Description

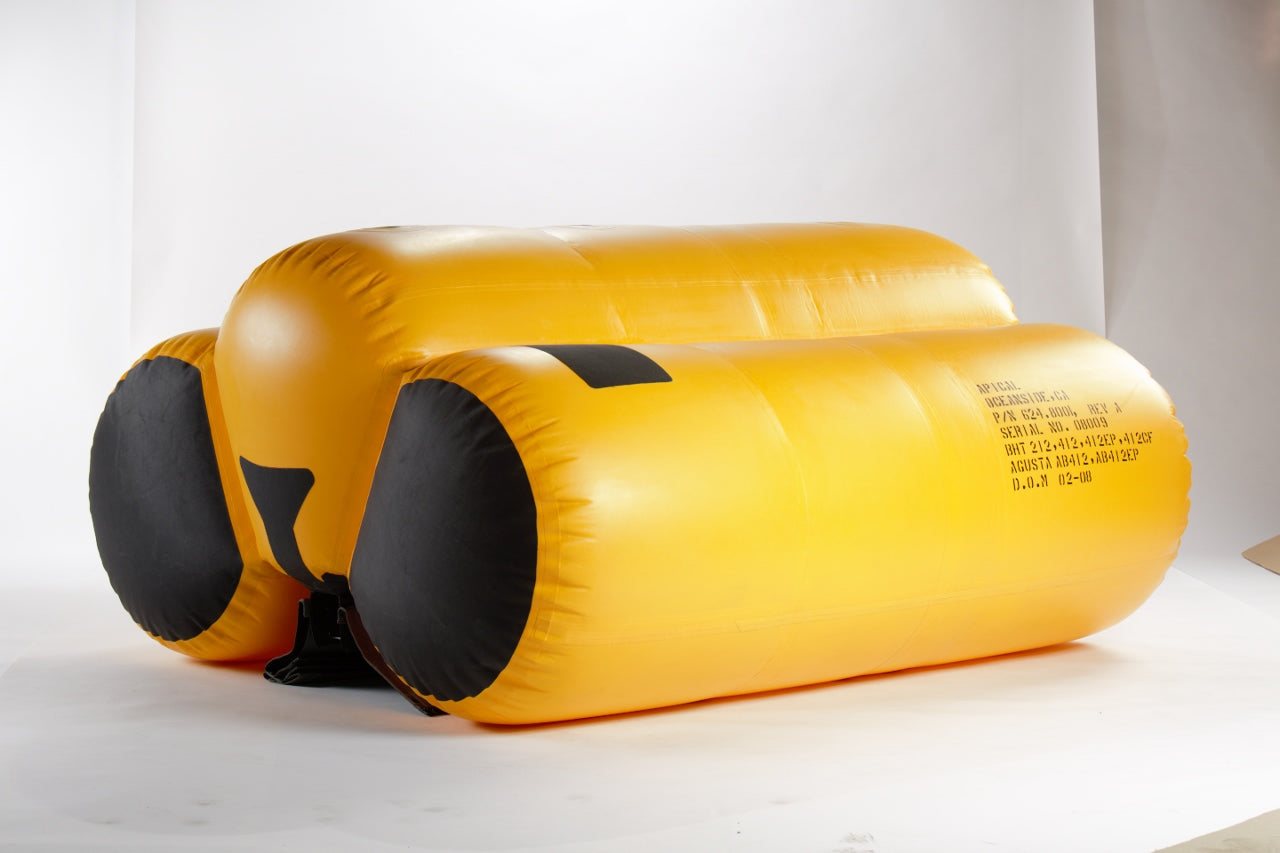

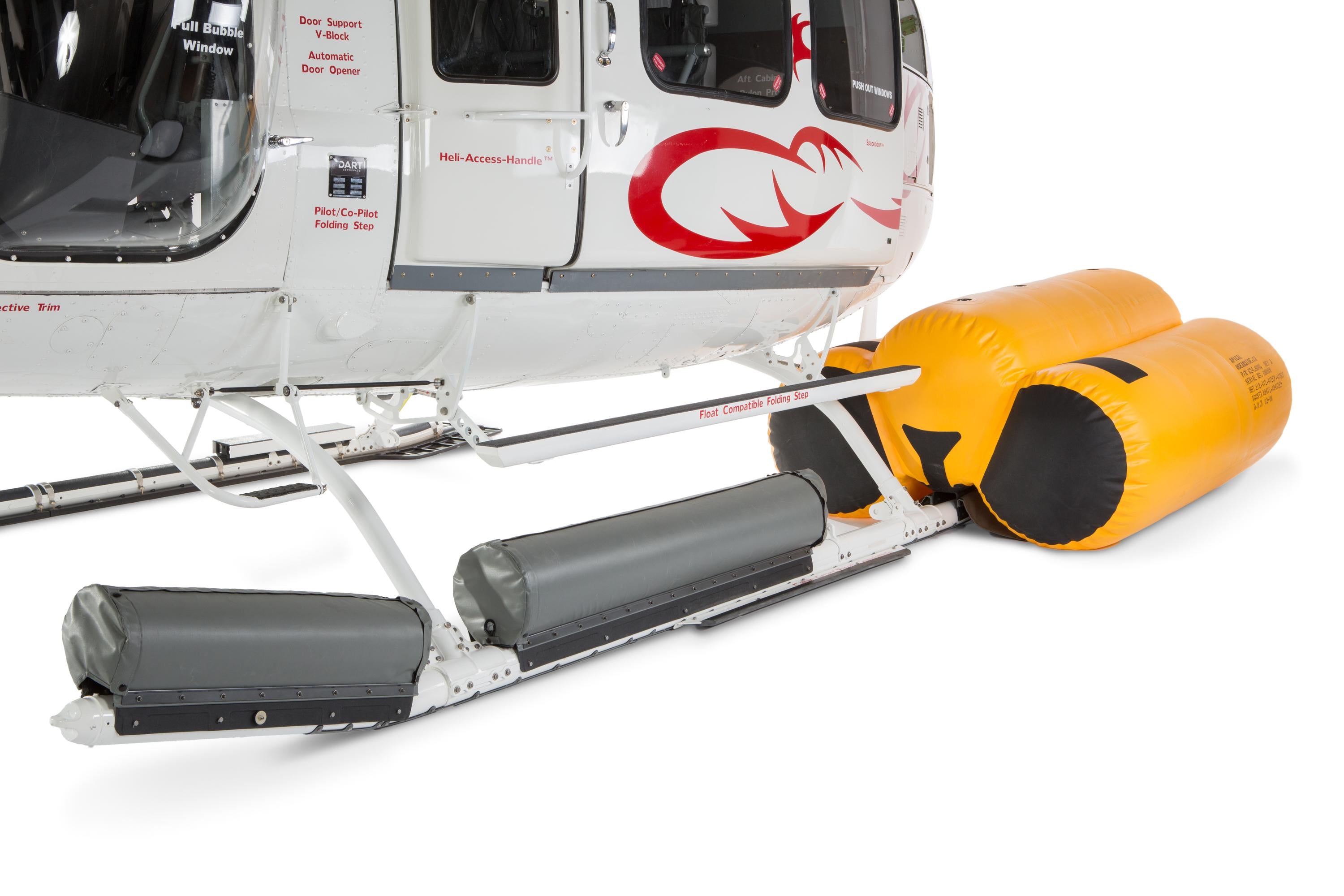

The 210/212/412 Emergency Float Kits consist of: six emergency floats attached to the skid gear, four water-activated float switches that are mounted on the underside of the fuselage, a float inflation reservoir located in the nose compartment, a collective-mounted FLOATS switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to the Mid floats and have their own mechanical inflation system consisting of: one liferaft inflation reservoir and three inflation handles, two attached externally to the passenger steps and one attached to the center console on the co-pilot side. The 210/212/412 combination float and liferaft system weighs 328 pounds, which is lighter than the original OEM Bell 412 emergency float system without liferaft.
*NOW APPROVED FOR 12,200-LB. INCREASED GROSS WEIGHT (412 only). Includes protection for RH Mid Float to prevent chafing when installed in conjunction with an internal hoist. Price is for complete float with raft system. Requires installation of D412-630-033/-034 Steps and float skidtubes (like DART D412-742-04X). Price is for complete float with liferaft system.
Key Features
- Exchange program available
- Requires installation of D412-630-033/-034 Steps
- Installs on high gear
Key Benefits
- Up to 18% lighter than OEM
- No life limit on inflatables (Floats & Liferafts)
- Best in the industry lead time
- Increased safety with electrical/mechanical & water sensor activation system
- Reduced maintenance cost (longer maintenance intervals)
- Tri-Bag technology allows for: - Significant weight reduction (smaller reservoir & less gas usage) - Increased stability
- Can install on DART, OEM & AAI float compatible skidtubes
- Also available 606.7803 Float System Pull Cable Test Tool
Approvals
N/A
