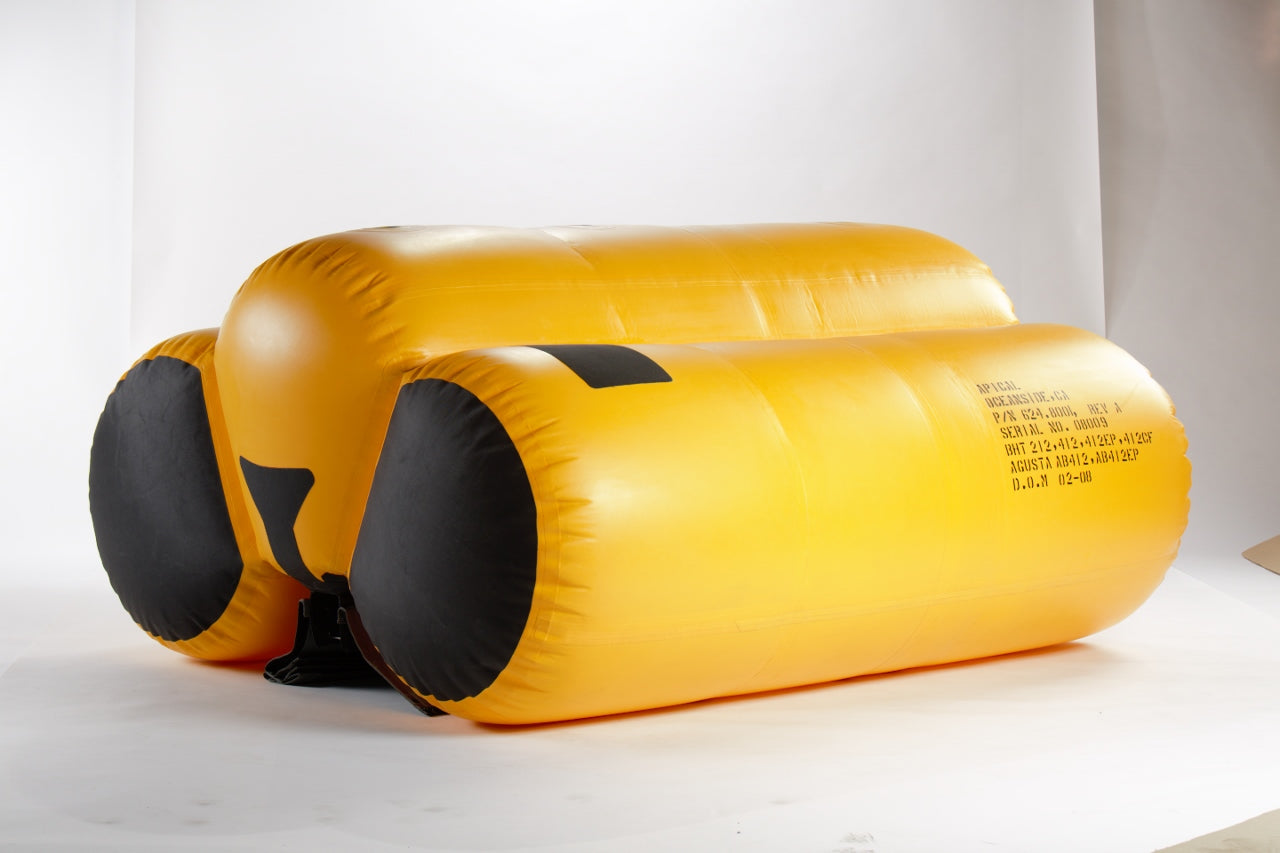

412 / 212 / 210 Tri-Bag Float System, External Hoist Compatible

Mission Equipment
Part Number: 614.7608
Aircraft Models: Bell - 210;Bell - 412

Price:
The 210/212/412 Emergency Float Kits consist of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, a float inflation reservoir located in the nose compartment, a collective-mounted floats switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attac... Read more
The 210/212/412 Emergency Float Kits consist of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, a float inflation reservoir located in the nose compartment, a collective-mounted floats switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to the Mid floats and have their own mechanical inflation system consisting of: 1 liferaft inflation reservoir and 3 inflation handles, 2 attached externally to the passenger steps and 1 attached to the center console on the co-pilot side. The 210/212/412 combination float and liferaft system weighs 328 lbs, which is lighter than the original OEM Bell 412 Emergency Float system without liferaft. *NOW APPROVED FOR 12,200-LB. INCREASED GROSS WEIGHT (412 only). Includes protection for RH Mid Float to prevent chafing when installed in conjunction with an external hoist. Price is for complete float system. Requires installation of D412-630-033/-034 Steps and float skidtubes (like DART D412-742-04X). Price is for complete float with liferaft system. Read less

Description

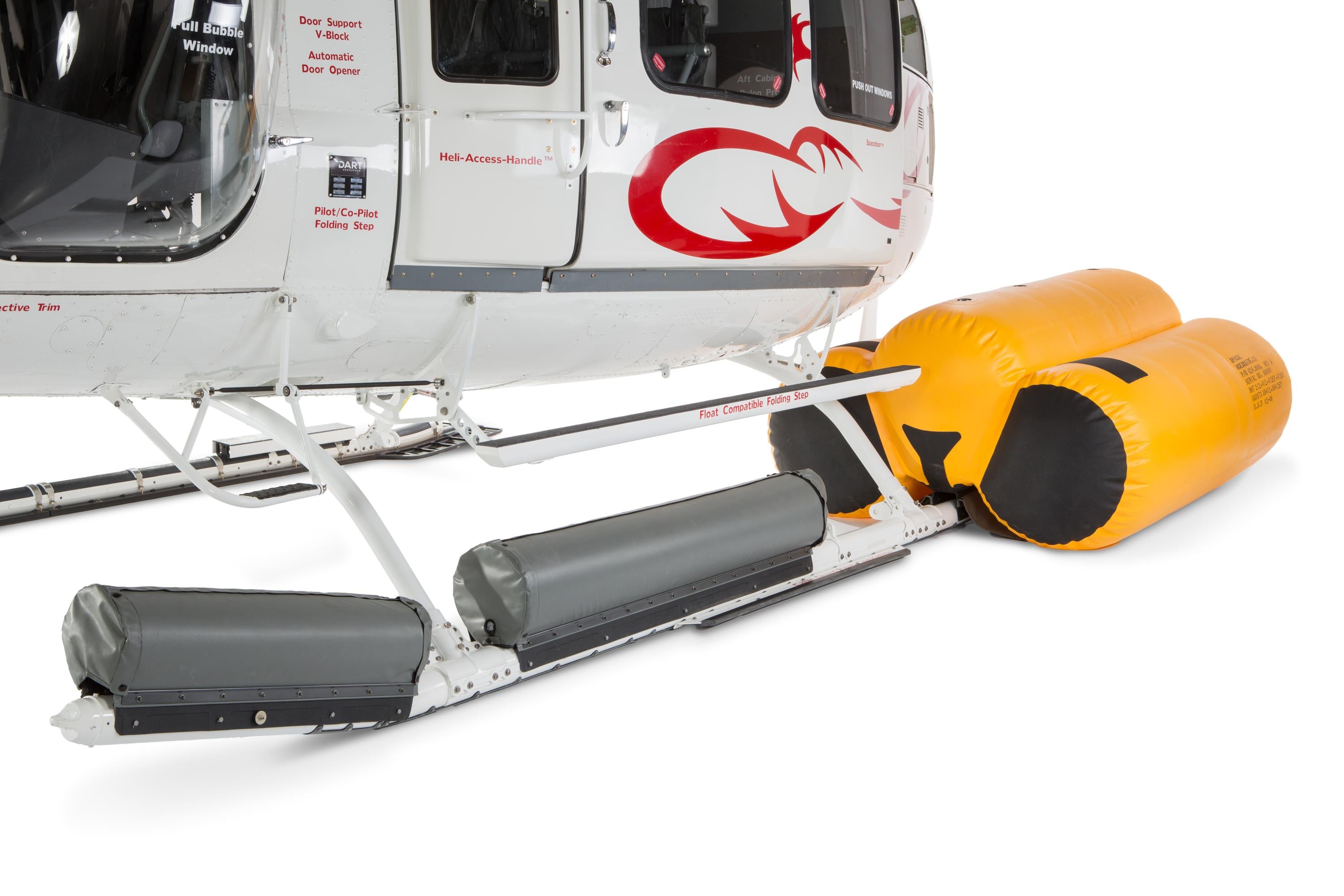

The 210/212/412 Emergency Float Kits consist of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, a float inflation reservoir located in the nose compartment, a collective-mounted floats switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to the Mid floats and have their own mechanical inflation system consisting of: 1 liferaft inflation reservoir and 3 inflation handles, 2 attached externally to the passenger steps and 1 attached to the center console on the co-pilot side. The 210/212/412 combination float and liferaft system weighs 328 lbs, which is lighter than the original OEM Bell 412 Emergency Float system without liferaft. *NOW APPROVED FOR 12,200-LB. INCREASED GROSS WEIGHT (412 only). Includes protection for RH Mid Float to prevent chafing when installed in conjunction with an external hoist. Price is for complete float system. Requires installation of D412-630-033/-034 Steps and float skidtubes (like DART D412-742-04X). Price is for complete float with liferaft system.

Key Features

  • Exchange program available
  • Available with integrated liferaft (10-man)
  • Requires installation of D412-630-033/-034 Steps
  • Compatible with internal or external hoists
  • Installs on high gear

Key Benefits

  • Up to 18% lighter than OEM
  • No life limit on inflatables (Floats & Liferafts)
  • Best in the industry lead time
  • Increased safety with electrical/mechanical & water sensor activation system
  • Reduced maintenance cost (longer maintenance intervals)
  • Tri-Bag technology allows for: - Significant weight reduction (smaller reservoir & less gas usage) - Increased stability
  • Can install on DART, OEM & AAI float compatible skidtubes
  • Also available 606.7803 Float System Pull Cable Test Tool

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01107 212/412/412CF/412EP/AB412/AB412EP Tri-Bag Float System
STC TCCA - Canada Ltr 5009-02 210/212/412/412CF/412EP/AB412/AB412EP Tri-Bag Float System
STC FAA - USA SR01779LA 210/212/412/412CF/412EP/AB412/AB412EP Tri-Bag Float System

OEM Cross References

OEM Indirect Replacement / 412-706-004-153 + 412-706-004-163 + 412-073-800-113 + 412-050-013-119 + 412-050-013-117 + 412-150-518

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

60 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 216.50 lbs / 98.20 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
