407 Shoulder Harnesses – Crew


Part Number: D407-1061-011

Aircraft Models: Bell - 407

  • In stock
These new DART Shoulder Harnesses use the latest technology from SCHROTH and offer value-added replacement restraint systems featuring modern rotary-style buckle, lightweight hardware and a strong inertia reel. This kit installs directly on OEM provisions. Kit includes: 1x D5741-041 (LH), 1x D5741-042 (RH) Harnesses and associated hardware.

Key Features

  • Includes 1x LH and 1x RH Crew Harnesses
  • Installs on OEM provisions
  • Uses existing aircraft attachment points
  • Inertia reel centered behind the occupant

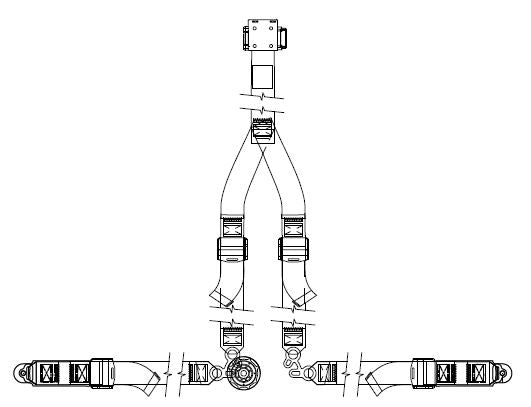

  • Y-shape Harness webbing junction

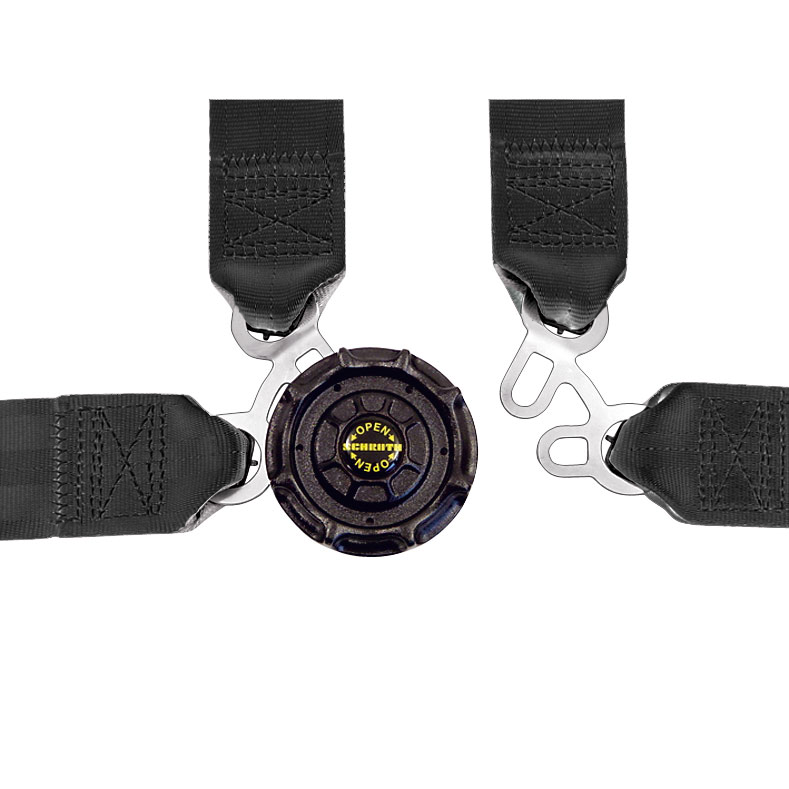

  • Modern rotary buckle style, lightweight hardware and black webbing
  • Shoulder harness attached to lap belt buckle parts, but can be separated for replacement
  • Plastic sleeves keep the buckle and belt both remain in the aircraft
  • TSO label protected by a plastic pouch
  • Meets TSO-C114 requirements

Key Benefits

  • Easy to install - direct OEM replacement
  • Lightweight - reels faster and prevents contact with fuselage when flung
  • Better buckling and unbuckling
  • Y-shape webbing junction offers additional comfort and reduces friction against the neck
  • Protected TSO label offers product longevity

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH20-18 206L/206L1/206L3/206L4/407 Installation of shoulder harness
STC FAA - USA SR04515NY 206L/206L1/206L3/206L4/407 Installation of the Shoulder Harness Kits

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 5.20 lb / 2.36 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
