Description

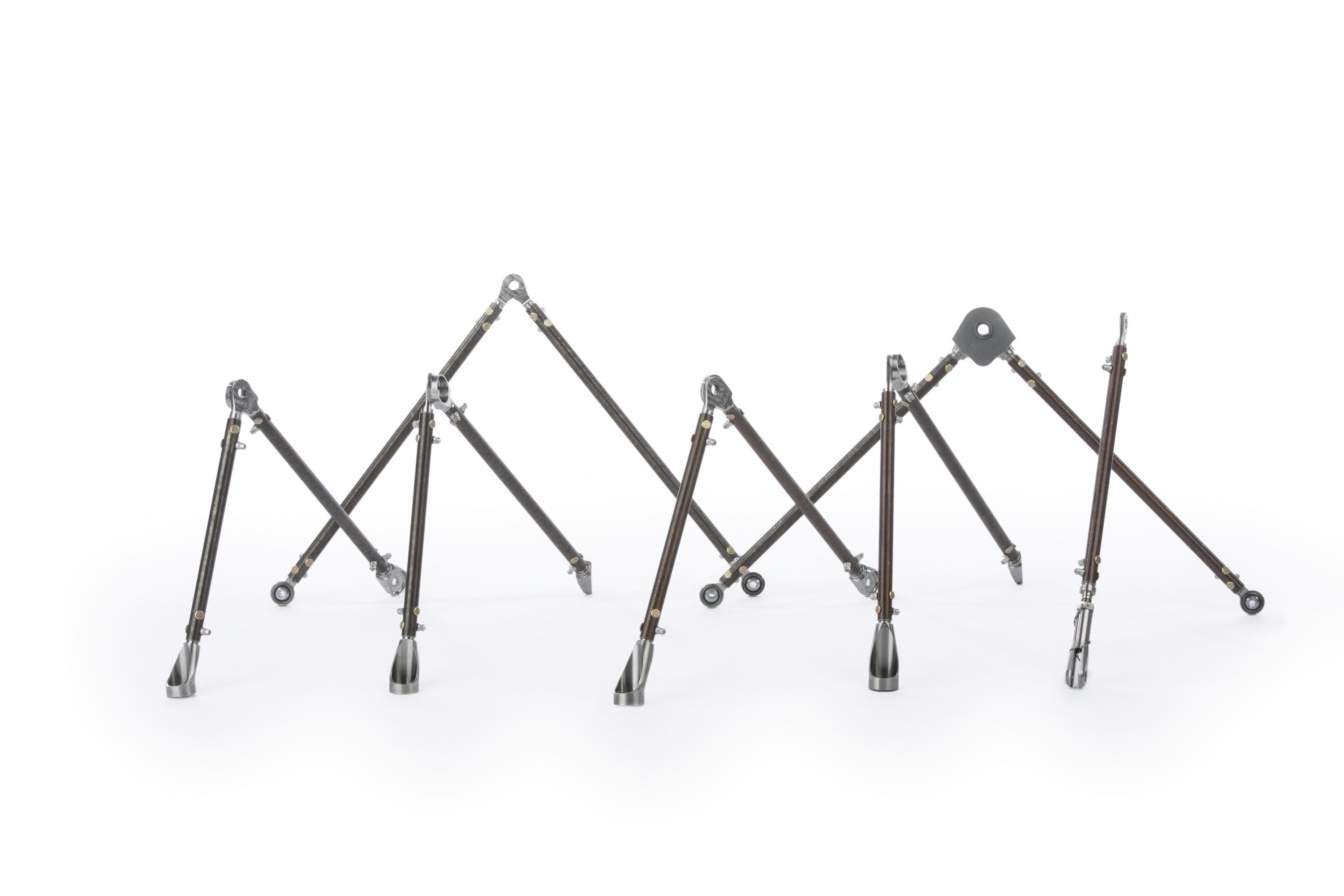

The DART replacement engine mount includes the necessary to replace components of the OEM engine mount. The kit consists of three bipod type mounts and one sway bar. The bipods are locates on the left, right, and Aft sides of the engine. The sway bar is installed on the front of the engine under the gear box.
*Installs using the same hardware and attachment points as the OEM. Replaces OEM engine mount for 407. Replaces OEM Fwd leg assembly (407-064-106-101), Aft leg assembly (407-064-105-101/102), Sway bar assembly (407-064-107-101) and Bipod assembly (407-060-111-101).
Key Features
- Direct replacement for OEM mounts
- Machined fittings
- Hi-lok fasteners
Key Benefits
- Stainless steel construction for improved durability and increased corrosion resistance
- Machined end fittings for improved reliability
- User-friendly system reduces the amount of time required for engine alignment
- Parts can be replaced on an individual basis
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | TCCA - Canada | SH14-17 | 206/206A/206A1/206B/206B1/206L/206L1/206L3/206L4/407 | Replacement Engine Mounts |
| STC | FAA - USA | SR03465NY | 206/206A/206A1/206B/206B1/206L/206L1/206L3/206L4/407 | Replacement Engine Mounts |
| STC | EASA - Europe | 10053486 | 206A/206B/206L/206L1/206L3/206L4/407 | Replacement Engine Mounts |
