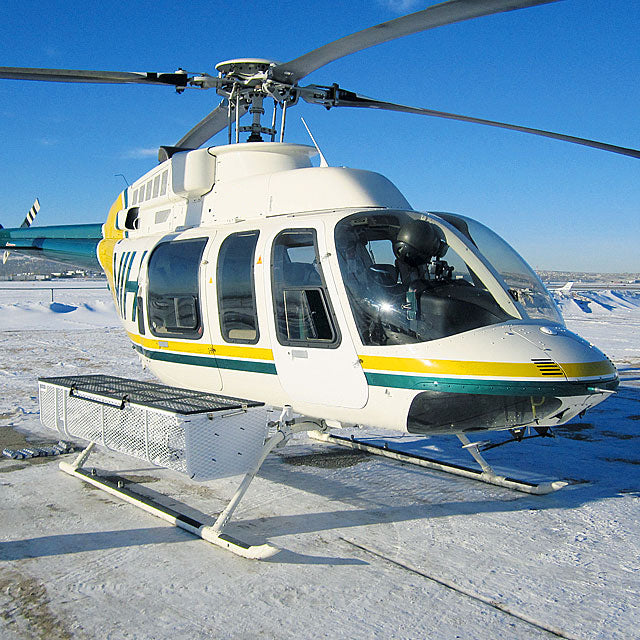

407 Quick Release Heli-Utility-Basket™ Lightweight Lid - RH

Mission Equipment
Part Number: D407-797-014
Aircraft Models: Bell - 407

Price:
The DART Quick Release Heli-Utility-Basket™ features a quick release mounting system that enables the operator to remove and install the basket quickly, without tools. Furthermore, for enhanced safety, replacement crosstube supports are included and designed specifically to allow for the mounting of a basket. The low slung design allows for operators to install a large capacity basket that does not impede passenger exit from the aircraft and does not require the insta... Read more
The DART Quick Release Heli-Utility-Basket™ features a quick release mounting system that enables the operator to remove and install the basket quickly, without tools. Furthermore, for enhanced safety, replacement crosstube supports are included and designed specifically to allow for the mounting of a basket. The low slung design allows for operators to install a large capacity basket that does not impede passenger exit from the aircraft and does not require the installation of push out windows. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. Ease of use with gas spring to assist when opening and closing the lid. The basket features a lightweight fabric mesh lid that reduces weight and is attached using a robust hinge system. *Installs RH on high gear. Includes mounting system. Not compatible with emergency float systems. Fixed provisions also compatible with quick release heli-access-steps. Price is per basket. Read less

Description

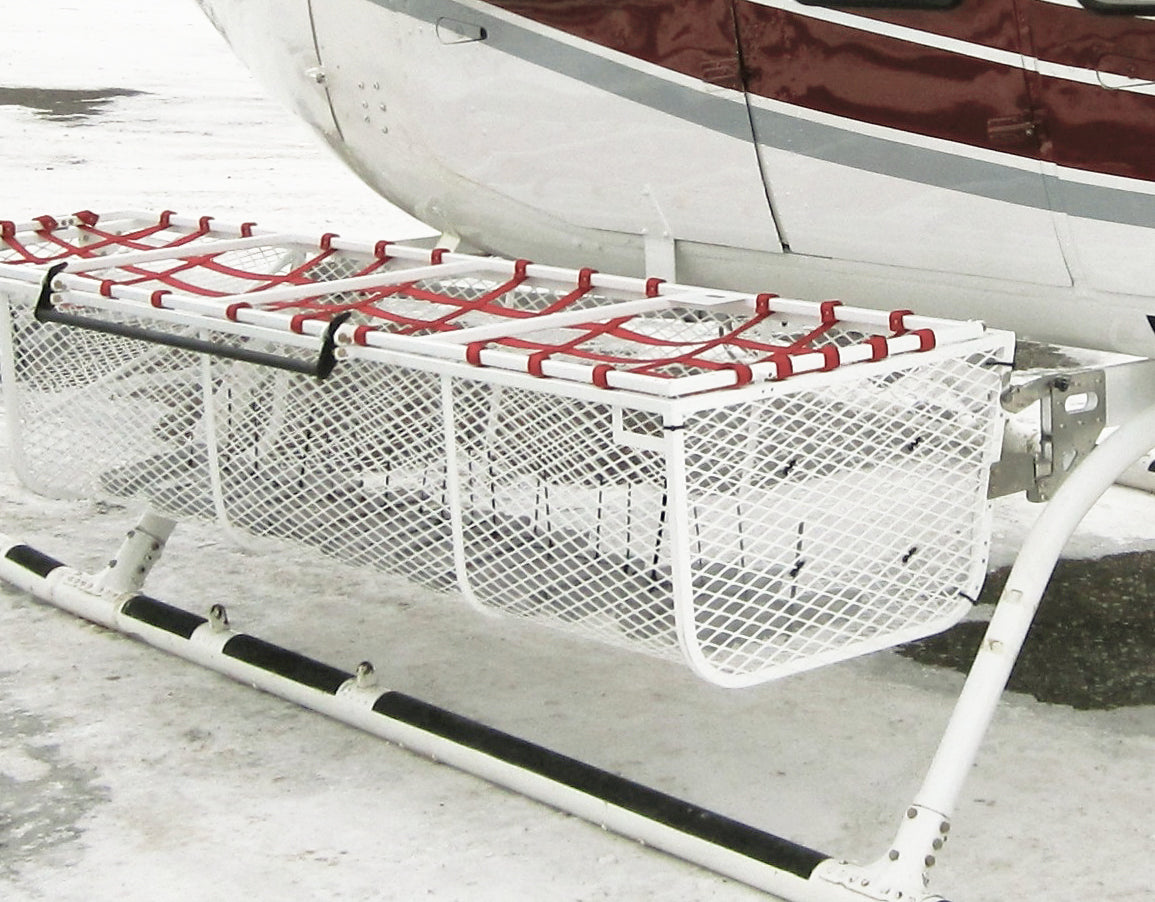

The DART Quick Release Heli-Utility-Basket™ features a quick release mounting system that enables the operator to remove and install the basket quickly, without tools. Furthermore, for enhanced safety, replacement crosstube supports are included and designed specifically to allow for the mounting of a basket. The low slung design allows for operators to install a large capacity basket that does not impede passenger exit from the aircraft and does not require the installation of push out windows. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. Ease of use with gas spring to assist when opening and closing the lid. The basket features a lightweight fabric mesh lid that reduces weight and is attached using a robust hinge system. *Installs RH on high gear. Includes mounting system. Not compatible with emergency float systems. Fixed provisions also compatible with quick release heli-access-steps. Price is per basket.

Key Features

  • Self-locking handle
  • Gas spring assists with closing/opening and keeps lid closed/opened
  • Durable scratch resistant finish
  • Innovative quick release mounting system
  • Fabric mesh lid saves weight
  • Flat bottom design accommodates more types of cargo
  • Carrying handles

Key Benefits

  • Can be installed by 1 person in less than 1 minute without the use of tools (after initial installation)
  • Corrosion-resistant stainless steel construction
  • No VNE restriction
  • Does not impede access to the cargo doors
  • Allows unobstructed passenger egress
  • Fixed provisions also available separately for easy transfer

Approvals

Approval type Authority Reference number Aircraft approved Description
STC JCAB - Japan STC-498-TYO 407 Heli-Utility Basket and/or Heli-Access-Step Installation
STC EASA - Europe 10035429, Rev. 2 206L/206L1/206L3/206L4/407 Heli-Utility-Basket™ and/or Heli-Access-Step™ Installation
STC TCCA - Canada SH11-1 206L/206L1/206L3/206L4/407 Heli-Utility-Basket™ and/or Heli-Access-Step™ Installation
STC FAA - USA SR02996NY 206L/206L1/206L3/206L4/407 Heli-Utility-Basket™ and/or Heli-Access-Step™ Installation

OEM Cross References

N/A

External Warning

Verify existing support fitting hardware against IIN-D407-797-1 section 3.1.5.Only can have one side installed at a time.

Prerequisite

N/A

Compatible With

Fixed provisions also compatible with quick release heli-access-steps.

Not Compatible With

Emergency float systems.

Flight Restrictions

Day/night VFR only. Only one basket may be installed at a time. Doors must remain closed during flight.

Installation Time

3 hrs

Dimensions And Weight

  • Length: 96" / 2.4m
  • Width: 23.5" / 0.60m
  • Weight Display: 90.00 lbs / 40.90 kg

Load Capacity And Volume

  • Volume: 17.3 ft3 / 0.50 m3
  • Load Capacity: 265 lbs / 120.2 kg
