407 Cross-body Harnesses – Pax


Part Number: D407-1061-013

Aircraft Models: Bell - 407

  • In stock

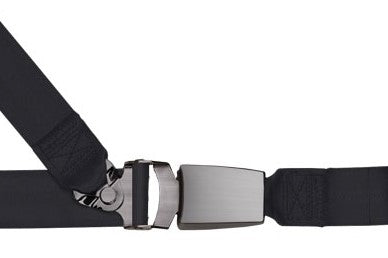

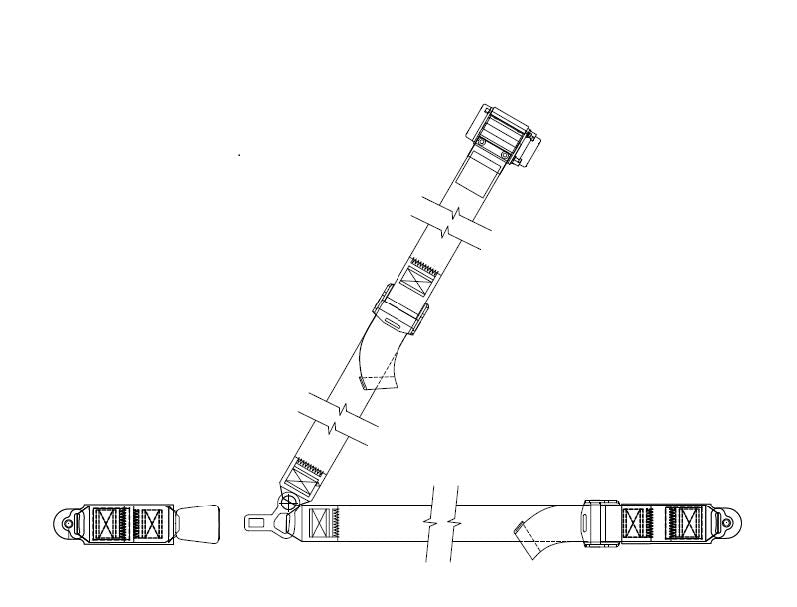

These new DART Cross-body Harnesses use the latest technology from SCHROTH and offer value-added replacement restraint systems featuring modern push button metal buckle style, lightweight hardware and a strong inertia reel. This kit installs directly on OEM provisions. Kit includes: 2x D5743-041 (LH), 1x D5743-042 (RH) Harnesses and associated hardware.

Key Features

  • Includes 2x LH and 1x RH Cross-body Passenger Harnesses
  • Uses existing aircraft attachment points
  • Modern push button metal buckle style, lightweight hardware and black webbing
  • Shoulder harness attached to lap belt buckle parts, but can be separated for replacement
  • Plastic sleeves keep the buckle and belt both remain in the aircraft
  • TSO label protected by a plastic pouch
  • Meets TSO-C114 requirements

Key Benefits

  • Easy to install - direct OEM replacement
  • Lightweight
  • Protected TSO label offers product longevity

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH20-18 206L/206L1/206L3/206L4/407 Installation of shoulder harness
STC FAA - USA SR04515NY 206L/206L1/206L3/206L4/407 Installation of the Shoulder Harness Kits

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 6.24 lb / 2.83 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
