206L Tri-Bag Float System with Liferaft

Mission Equipment
Part Number: 614.3003
Aircraft Models: Bell - 206L

Price:
The Tri-Bag System is the first integrated survival solution for helicopters. In addition to providing the most stable float platform in the industry, the kits is available with 2 externally mounted, 6-man, twin tube, full canopy liferafts at a weight of only 169 lbs. This system frees up valuable passenger space because liferafts do not have to be stowed in the cabin where they are difficult to reach and sometimes cost operators access to a seat. The system is design... Read more

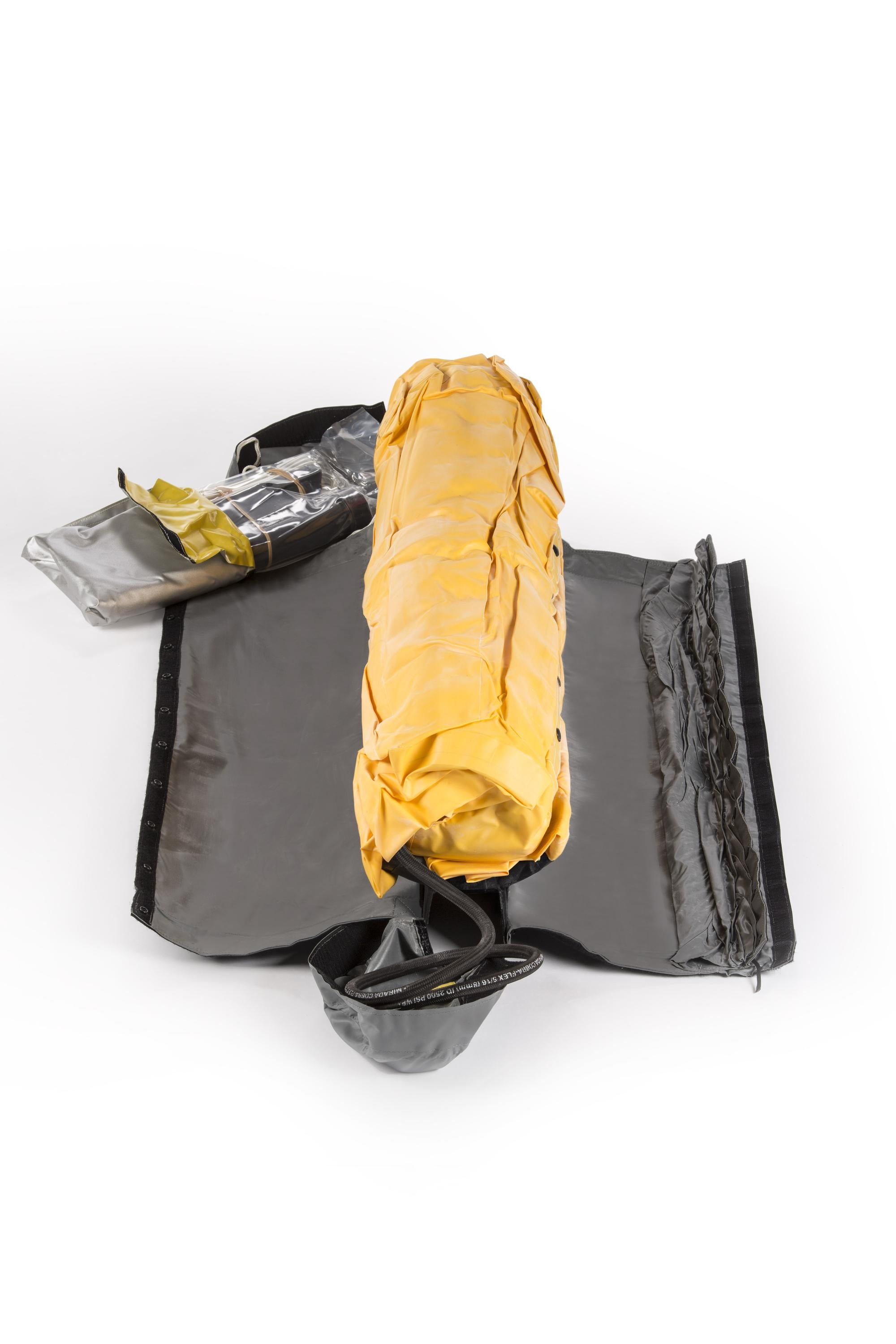

The Tri-Bag System is the first integrated survival solution for helicopters. In addition to providing the most stable float platform in the industry, the kits is available with 2 externally mounted, 6-man, twin tube, full canopy liferafts at a weight of only 169 lbs. This system frees up valuable passenger space because liferafts do not have to be stowed in the cabin where they are difficult to reach and sometimes cost operators access to a seat. The system is designed to replace the OEM single bags and cylinders while using the existing flotation landing gear. The system was designed with the operator in mind and takes approximately 30 man hours to install. An optional automatic electrical inflation system is now available. 2 water activated switches are installed on the underside of the fuselage to provide an automatic back-up to the pilot operated mechanical system. *Kit includes Fwd, Mid & Aft Tri-Bag Floats with integrated liferaft in Mid Bag Floats. System installation and maintenance requires 606.7803 pull cable test fixture (sold separately). Price is for complete float with liferaft system. Read less

Description

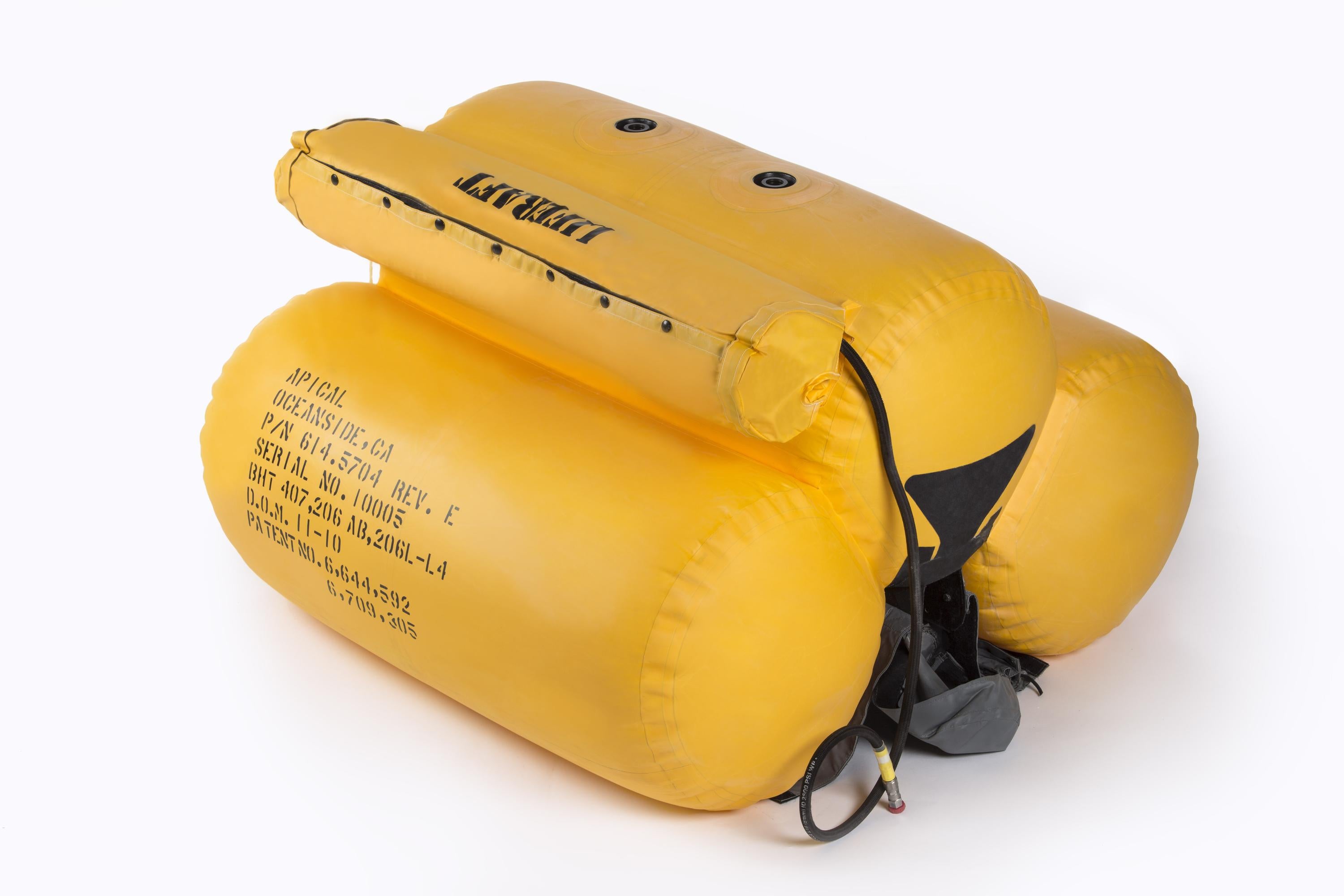

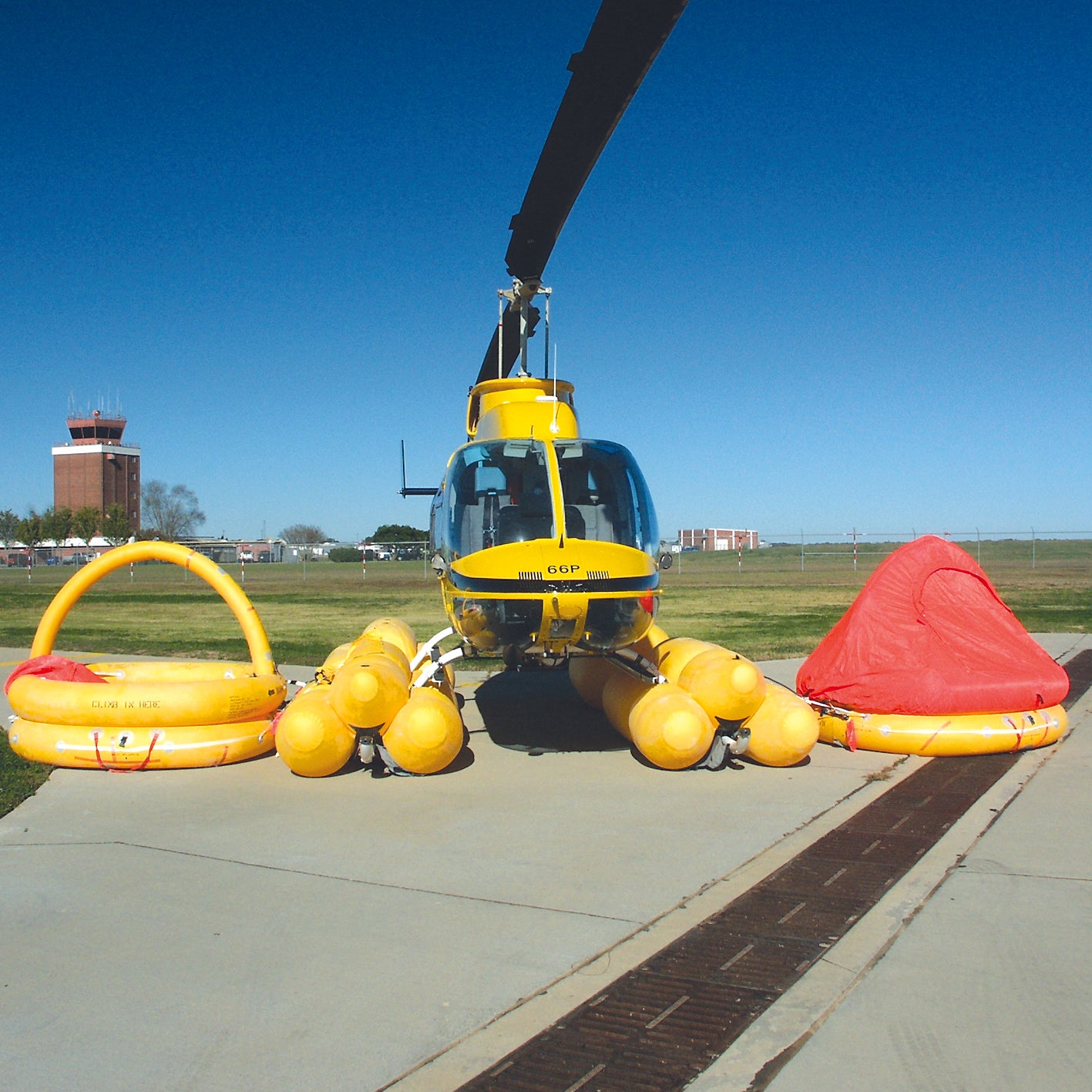

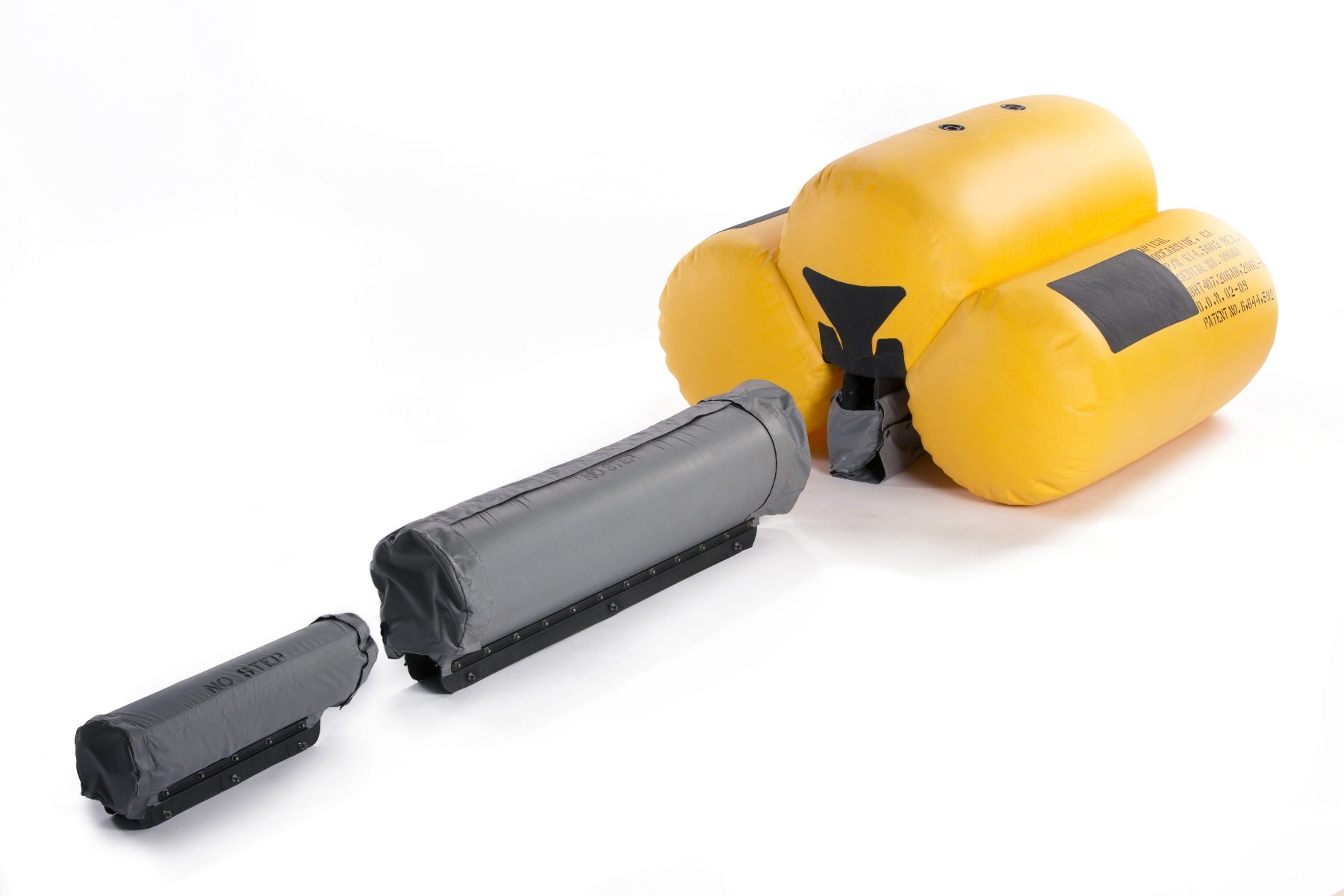

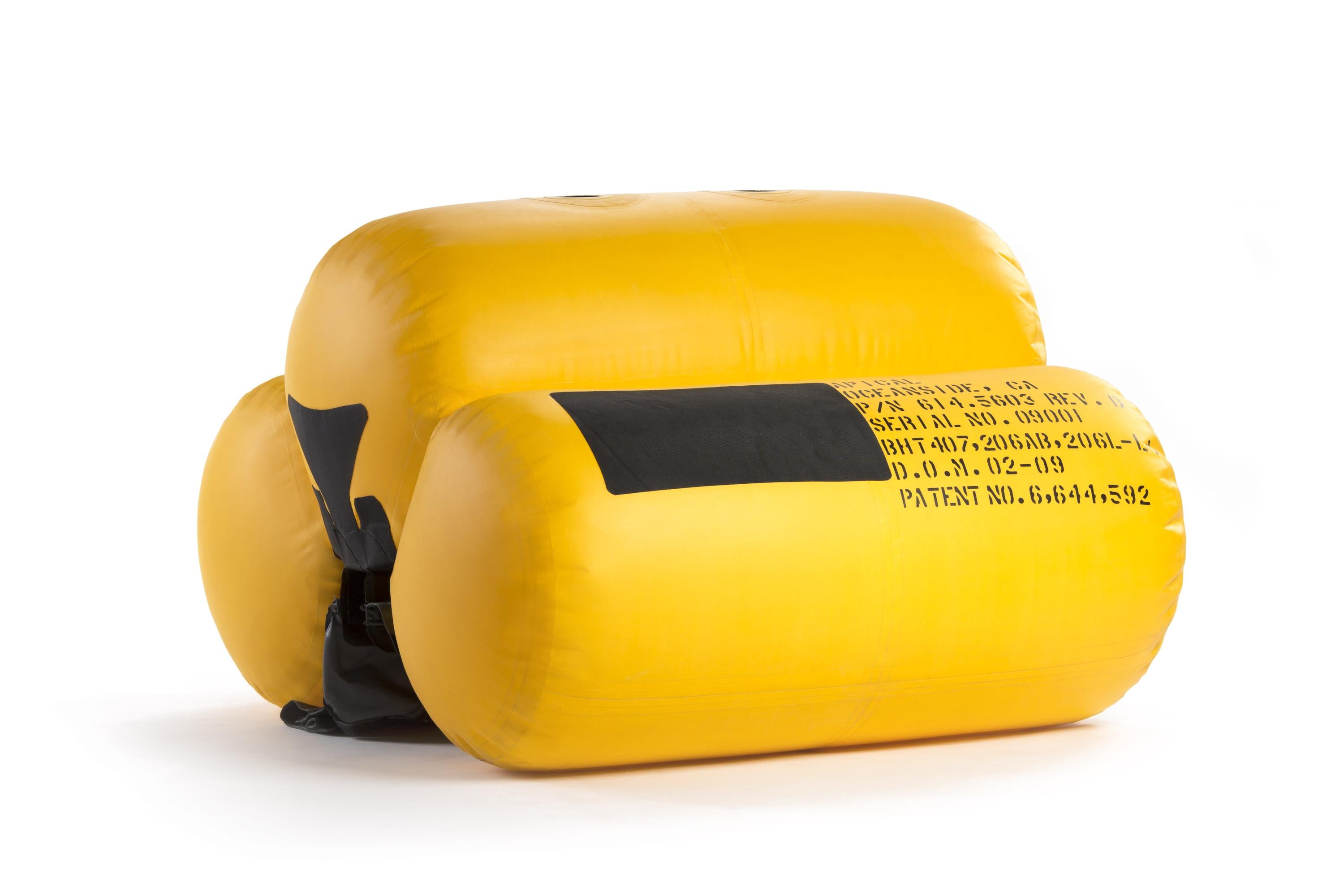

The Tri-Bag System is the first integrated survival solution for helicopters. In addition to providing the most stable float platform in the industry, the kits is available with 2 externally mounted, 6-man, twin tube, full canopy liferafts at a weight of only 169 lbs. This system frees up valuable passenger space because liferafts do not have to be stowed in the cabin where they are difficult to reach and sometimes cost operators access to a seat. The system is designed to replace the OEM single bags and cylinders while using the existing flotation landing gear. The system was designed with the operator in mind and takes approximately 30 man hours to install. An optional automatic electrical inflation system is now available. 2 water activated switches are installed on the underside of the fuselage to provide an automatic back-up to the pilot operated mechanical system. *Kit includes Fwd, Mid & Aft Tri-Bag Floats with integrated liferaft in Mid Bag Floats. System installation and maintenance requires 606.7803 pull cable test fixture (sold separately). Price is for complete float with liferaft system.

Key Features

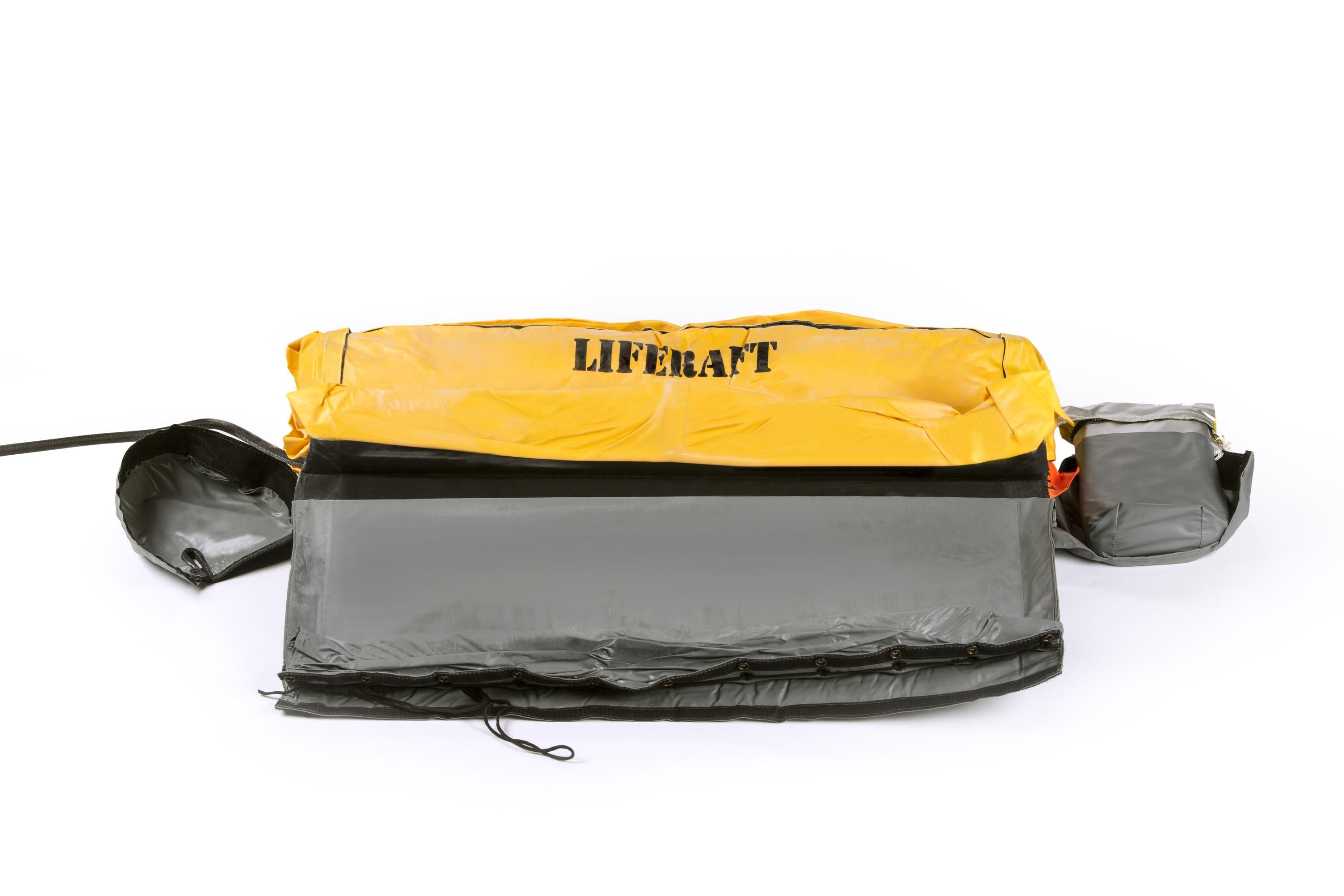

  • Kit includes 2 integrated liferafts
  • No life limit on inflatables (Floats & Liferafts)
  • Exchange program available

Key Benefits

  • Significant weight reduction
  • Reduce installation time
  • Compatible with DART and OEM landing gear
  • Also available 606.7803 Float System Pull Cable Test Tool

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-662/2019 206A/206B/206L/206L1/206L3/206L4/407 Instalaciòn de flotadores de emergencia
STC EASA - Europe EASA.IM.R.S.01135 206A/B/206L/206L1/206L3/206L4/407 Tri-Bag Emergency Float System
STC TCCA - Canada SH06-1 206A/B/206L/206L1/206L3/206L4/407 Tri-Bag Emergency Float System
STC FAA - USA SR01535LA 206A/B/206L/206L1/206L3/206L4/407 Tri-Bag Emergency Float System

OEM Cross References

OEM Indirect Replacement / 206-365-105 + 69FASA
OEM Indirect Replacement / 206-395-001 + 69FASA

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

30 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 169.00 lbs / 76.66 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
