206L Shoulder Harnesses (AAI prov.) – Pax


Part Number: D206-1061-023

Aircraft Models: Bell - 206L

  • In stock
These new DART Shoulder Harnesses use the latest technology from SCHROTH and offer value-added replacement restraint systems featuring modern rotary-style buckle, lightweight hardware and a strong inertia reel to prevent costly damages to aircraft fuselage. This kit installs on seats provisioned with AAI STC SH2073SO or SH2751SO. Kit includes: 2x D5742-041 (LH), 1x D5742-042 (RH) Harnesses and associated hardware.

Key Features

  • Includes 2x LH and 1x RH Passenger Harnesses
  • Requires pre-installation of AAI conversion kit provisions
  • Uses existing aircraft attachment points
  • Inertia reel centered behind the occupant

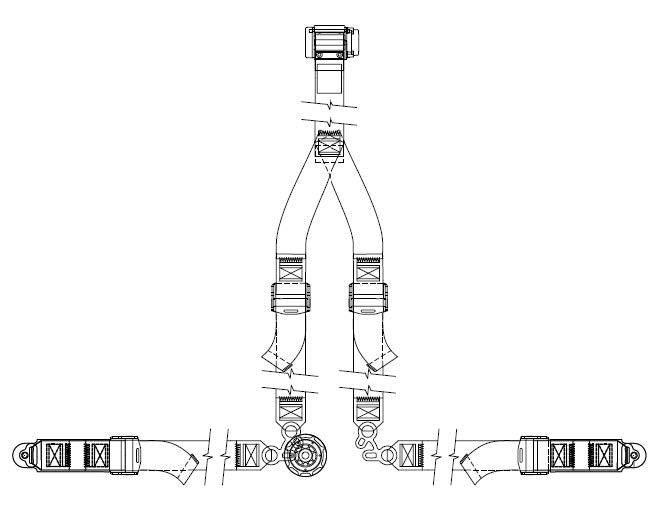

  • Y-shape Harness webbing junction

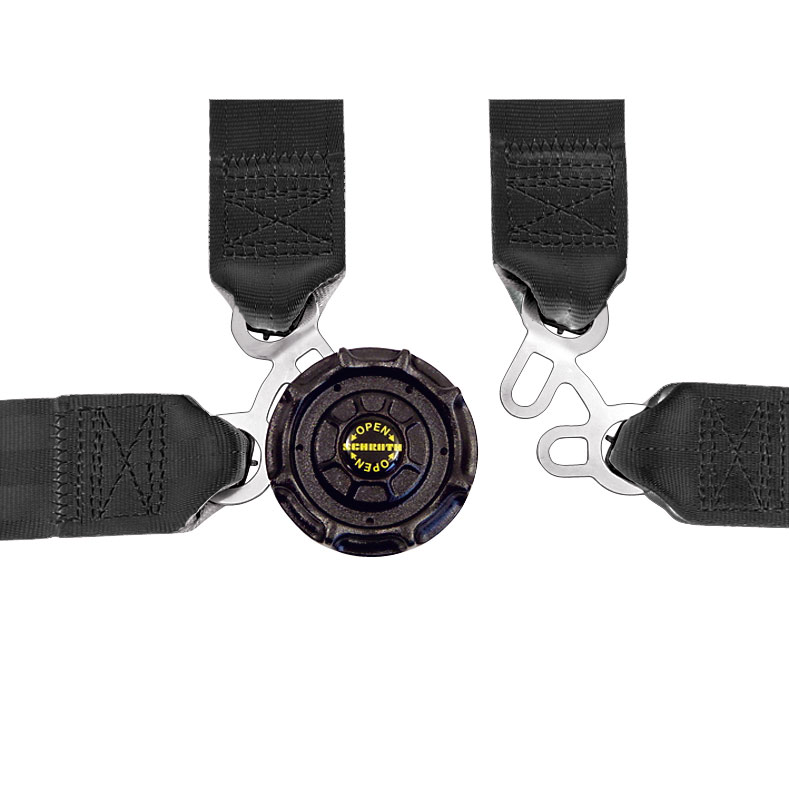

  • Modern rotary buckle style, lightweight hardware and black webbing
  • Shoulder harness attached to lap belt buckle parts, but can be separated for replacement
  • Plastic sleeves keep the buckle and belt both remain in the aircraft
  • TSO label protected by a plastic pouch
  • Meets TSO-C114 requirements

Key Benefits

  • Easy to install - no modification required
  • Lightweight - reels faster and prevents contact with fuselage when flung
  • Prevents damage to the aircraft fuselage
  • Prevents the lap belt from hanging outside the aircraft in flight
  • Better buckling and unbuckling
  • Y-shape webbing junction offers additional comfort and reduces friction against the neck
  • Protected TSO label offers product longevity

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH20-18 206L/206L1/206L3/206L4/407 Installation of shoulder harness
STC FAA - USA SR04515NY 206L/206L1/206L3/206L4/407 Installation of the Shoulder Harness Kits

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 7.68 lb / 3.48 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
