Description
These new DART Shoulder Harnesses use the latest technology from SCHROTH and offer value-added replacement restraint systems featuring modern rotary-style buckle, lightweight hardware and a strong inertia reel to prevent costly damages to aircraft fuselage. This kit installs on seats provisioned with AAI STC SH2073SO or SH2751SO.
Kit includes: 1x D5740-041 (LH), 1x D5740-042 (RH) Harnesses and associated hardware.
Key Features
- Includes 1x LH and 1x RH Crew Harnesses
- Requires pre-installation of AAI conversion kit provisions
- Uses existing aircraft attachment points
- Inertia reel centered behind the occupant

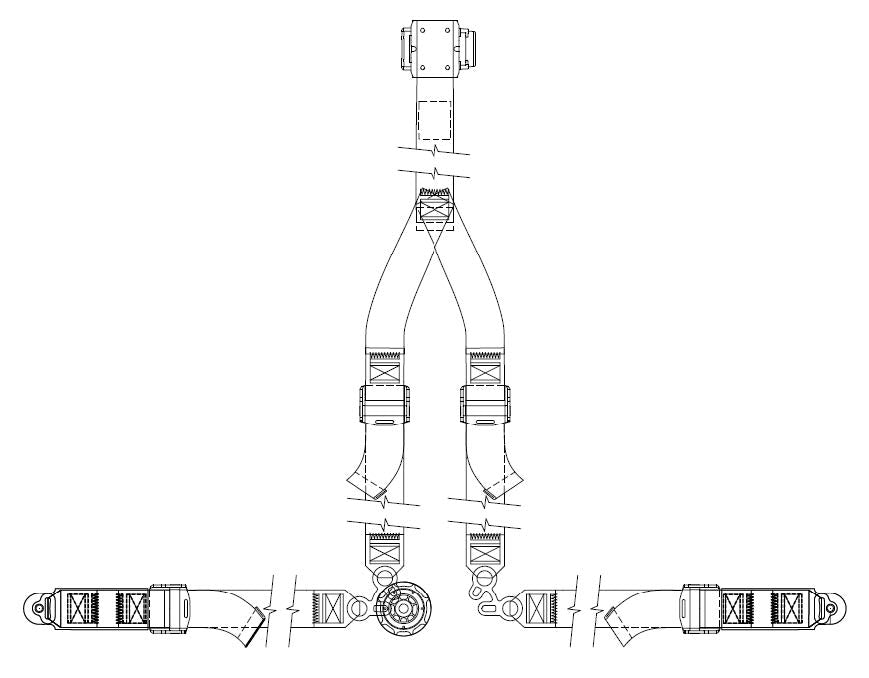

- Y-shape Harness webbing junction

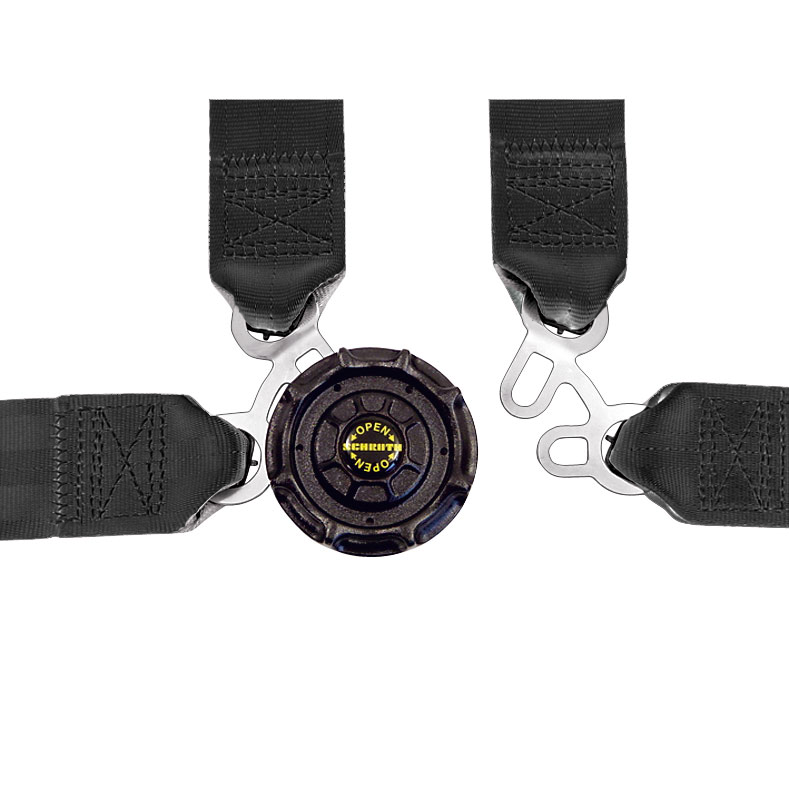

- Modern rotary buckle style, lightweight hardware and black webbing
- Shoulder harness attached to lap belt buckle parts, but can be separated for replacement
- Plastic sleeves keep the buckle and belt both remain in the aircraft
- TSO label protected by a plastic pouch
- Meets TSO-C114 requirements
Key Benefits
- Easy to install - no modification required
- Lightweight - reels faster and prevents contact with fuselage when flung
- Prevents damage to the aircraft fuselage
- Prevents the lap belt from hanging outside the aircraft in flight
- Better buckling and unbuckling
- Y-shape webbing junction offers additional comfort and reduces friction against the neck
- Protected TSO label offers product longevity
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | TCCA - Canada | SH20-18 | 206L/206L1/206L3/206L4/407 | Installation of shoulder harness |
| STC | FAA - USA | SR04515NY | 206L/206L1/206L3/206L4/407 | Installation of the Shoulder Harness Kits |
