Description

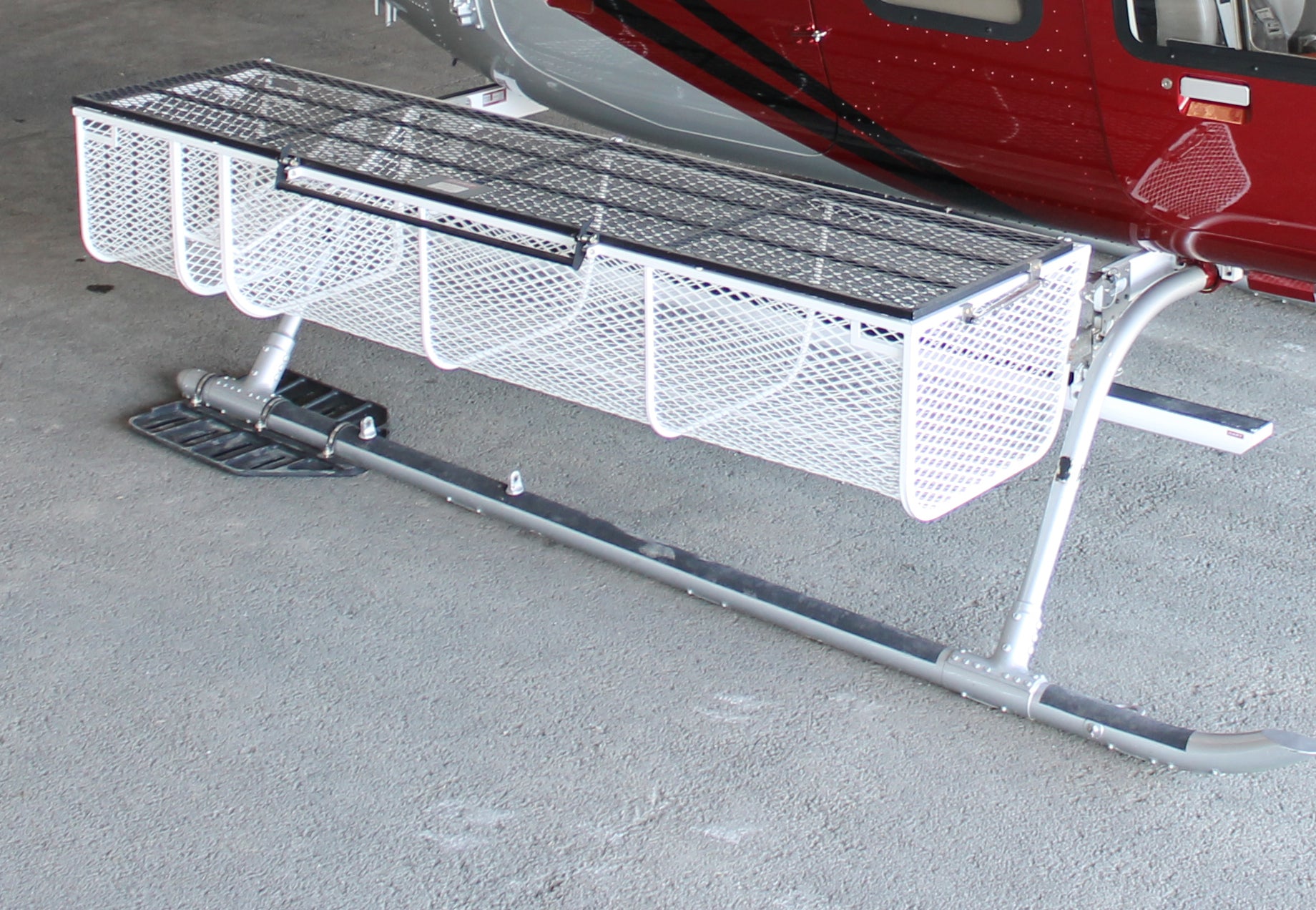

The DART Quick Release Heli-Utility-Basket™ features a quick release mounting system that enables the operator to remove and install the basket quickly, without tools. Furthermore, for enhanced safety, replacement crosstube supports are included and designed specifically to allow for the mounting of a basket. The low slung design allows for operators to install a large capacity basket that does not impede passenger exit from the aircraft and does not require the installation of push out windows. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. Ease of use with gas spring to assist when opening and closing the lid. The basket features a flat heavy duty stainless steel lid that doubles as a step or as a work platform and is attached using a robust hinge system.
*Installs RH on high gear. Includes mounting system. Not compatible with emergency float systems. Fixed provisions also compatible with quick release heli-access-steps. Price is per basket.
Key Features
- Self-locking handle
- Gas spring assists with closing/opening and keeps lid closed/opened
- Durable scratch resistant finish
- Innovative quick release mounting system
- Heavy duty lid doubles as a step or walkway for maintenance
- Flat bottom design accommodates more types of cargo
- Carrying handles
Key Benefits
- Can be installed by 1 person in less than 1 minute without the use of tools (after initial installation)
- Corrosion-resistant stainless steel construction
- No VNE restriction
- Installs using existing aircraft hard points
- Does not impede access to the cargo doors
- Allows unobstructed passenger egress
- Fixed provisions also available separately for easy transfer
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | 10035429, Rev. 2 | 206L/206L1/206L3/206L4/407 | Heli-Utility-Basket™ and/or Heli-Access-Step™ Installation |
| STC | TCCA - Canada | SH11-1 | 206L/206L1/206L3/206L4/407 | Heli-Utility-Basket™ and/or Heli-Access-Step™ Installation |
| STC | FAA - USA | SR02996NY | 206L/206L1/206L3/206L4/407 | Heli-Utility-Basket™ and/or Heli-Access-Step™ Installation |
