Description

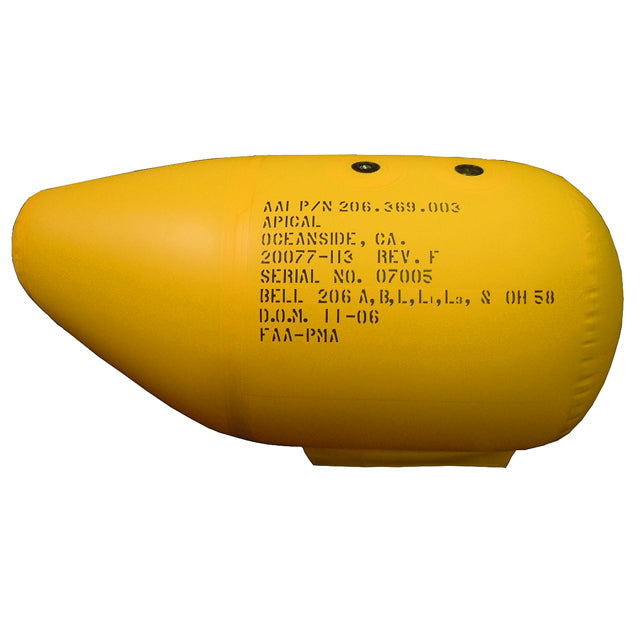

The replacement emergency floats consist of 6 floats (2 Fwd, 2 Mid and 2 Aft). The Fwd and Mid floats consist of 2 separate air-holding chambers. The Aft floats consist of 4 separate air-holding chambers. The chambers are separated by bulkheads made of the same urethane nylon as the float tube to minimize the loss of buoyancy in the event of a puncture tear. Each chamber contains an inlet check valve for inflation by the cylinder/valve assembly and a combination PRV/topping valve for pressure relief to prevent over-pressurization and to provide a means for manual inflation.
*Replaces 206-050-248-111/206-050-248-117
Key Features
N/A
Key Benefits
N/A
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | TCCA - Canada | SH96-86 | 206A/B/206L/206L1/206L3 | Replacement Emergency Floats |
| STC | FAA - USA | SR00067LA | 206A/B/206L/206L1/206L3 | Replacement Emergency Floats |
