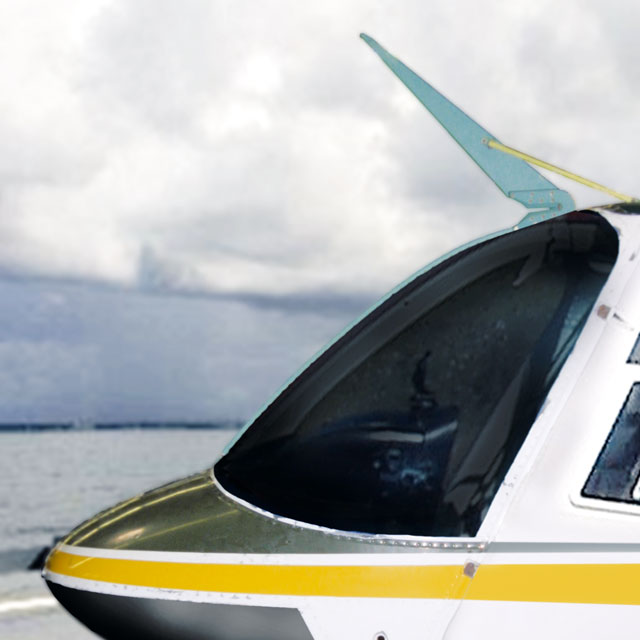

206A/B/L-Series Cable Cutter System, Low

Mission Equipment
Part Number: 646.9502
Aircraft Models: Bell - 206A/B

Price:
The Cable Cutters System provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The system is designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. This design has proven to be effective even during multiple wire strikes. The system incorporates both an upper and lower cutter assemblies and each is de... Read more
The Cable Cutters System provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The system is designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. This design has proven to be effective even during multiple wire strikes. The system incorporates both an upper and lower cutter assemblies and each is designed with high strength cutting blades. An optional GPS Antenna Mount Kit is also available, which provides an ideal location for antenna placement on the upper cutter assembly. *Compatible with aircraft on low landing gear. Read less

Description

The Cable Cutters System provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The system is designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. This design has proven to be effective even during multiple wire strikes. The system incorporates both an upper and lower cutter assemblies and each is designed with high strength cutting blades. An optional GPS Antenna Mount Kit is also available, which provides an ideal location for antenna placement on the upper cutter assembly. *Compatible with aircraft on low landing gear.

Key Features

  • Tested to cut cables with 14,000 lbs / 6,350 kg tensile strength
  • Includes upper & lower cutter assemblies and windshield deflector
  • Compatible with 647.5701 GPS mount

Key Benefits

  • Enhanced safety: prevents possible wire or cable strike on flight controls
  • Effective during multiple wire strikes
  • Compatible with factory installed fixed provisions
  • Shortest lead time
  • Lowest acquisition cost

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10029348 206A/B/206L/206L1/206L3/206L4 Cable Cutters Kit
STC TCCA - Canada SH10-37 206A/B/206L/206L1/206L3/206L4 Cable Cutters Kit
STC FAA - USA SR02271LA 206A/B/206L/206L1/206L3/206L4 Cable Cutters Kit

OEM Cross References

OEM Replacement / 374-83110-1

External Warning

Kit contains parts with limited shelf life, will ship with a minimum life of 3 months

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

35 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 17.60 lbs / 7.98 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
