206A/B Bearpaws

Mission Equipment
Part Number: D206-559-011
Aircraft Models: Bell - 206A/B

Price:
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; i... Read more
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *19" wide footprint. Compatible with Tri-Bag Floats, not compatible with Airglass ski modified skids. Price is per aircraft. Read less

Description

For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *19" wide footprint. Compatible with Tri-Bag Floats, not compatible with Airglass ski modified skids. Price is per aircraft.

Key Features

  • Wearplates also available
  • CNC machined UHMW polymer provides consistent load transfer

Key Benefits

  • No modifications to skidtube required
  • High strength polymer with memory, deflects under critical point loading without failure and returns to original shape when unloaded
  • Keeps tail high in soft terrain to prevent tail strikes
  • Lightweight
  • Easy to install
  • Won't chip, crack or break
  • Float compatible
  • Compatible on DART and OEM Skidtubes

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 0796/3034 206A/206B/206L/206L1/206L3/206L4/407 Utility Equipment Kit
STC ANAC - Brazil 2010S10-08 206A/206B/206L1/206L3/206L4/407 Utility Equipment Kit
STC FAA - USA SH1031NE 206A/206B/206L/206L1/206L3/206L4/407 Utility Equipment Kit
STC TCCA - Canada SH92-17 206A/206B/206L/206L1/206L3/206L4/407 Utility Equipment Kit
STC JCAB - Japan STC-90-1-TYO 206A/206B/206L/206L1/206L3/206L4/407 Utility Equipment Kit

OEM Cross References

N/A

External Warning

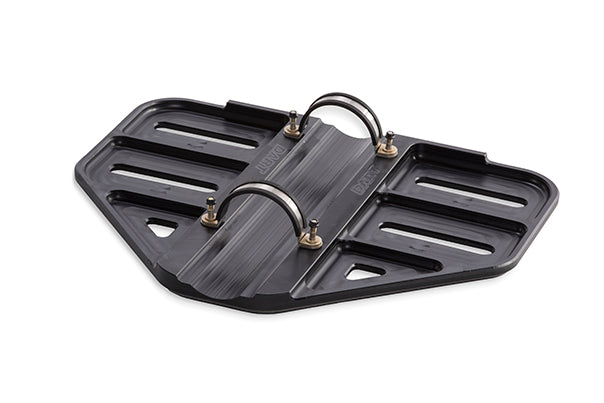

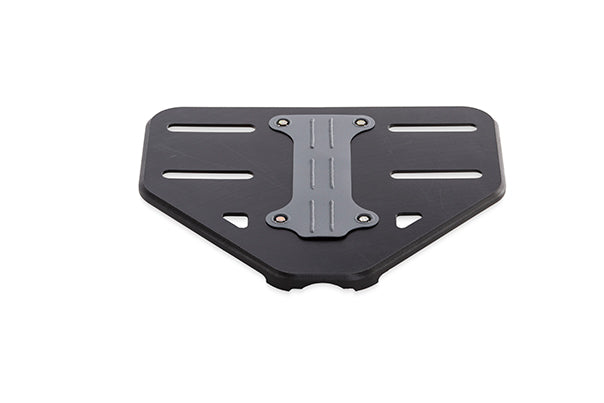

Images show optional wearplate kit, D206-559-031.

Prerequisite

N/A

Compatible With

DART (Apical) Tribag Floats

Not Compatible With

Airglass Ski Modified Skids

Flight Restrictions

N/A

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 8.50 lbs / 3.86 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
