206 L1/L3/L4 Replacement Engine Mount

Part Number: D206-811-017
Aircraft Models: Bell - 206L

Price:

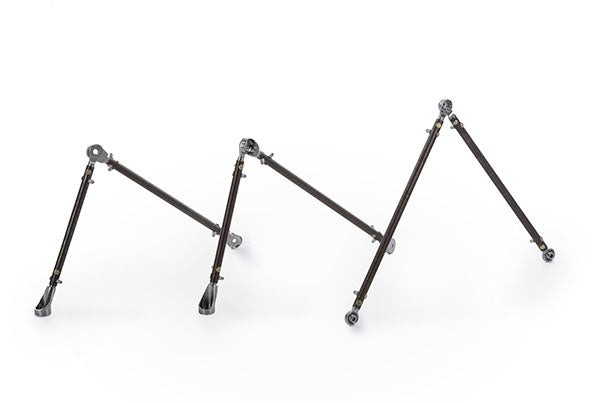

The DART replacement engine mount includes the necessary to replace components of the OEM engine mount. The kit consists of three bipod type mounts located on the left, right, and lower Fwd sides of the engine. *Installs using the same hardware and attachment points as the OEM. Replaces OEM engine mount for 206L1/L3/L4. Replaces OEM Fwd leg assembly (206-064-106-101), Aft leg assembly (206-064-107-101/-109/-103/-111) and Mid leg assembly (206-064-105-101/102).

Description

The DART replacement engine mount includes the necessary to replace components of the OEM engine mount. The kit consists of three bipod type mounts located on the left, right, and lower Fwd sides of the engine. *Installs using the same hardware and attachment points as the OEM. Replaces OEM engine mount for 206L1/L3/L4. Replaces OEM Fwd leg assembly (206-064-106-101), Aft leg assembly (206-064-107-101/-109/-103/-111) and Mid leg assembly (206-064-105-101/102).

Key Features

  • Direct replacement for OEM mounts
  • Machined fittings
  • Hi-lok fasteners

Key Benefits

  • Stainless steel construction for improved durability and increased corrosion resistance
  • Machined end fittings for improved reliability
  • User-friendly system reduces the amount of time required for engine alignment
  • Parts can be replaced on an individual basis

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH14-17 206/206A/206A1/206B/206B1/206L/206L1/206L3/206L4/407 Replacement Engine Mounts
STC FAA - USA SR03465NY 206/206A/206A1/206B/206B1/206L/206L1/206L3/206L4/407 Replacement Engine Mounts
STC EASA - Europe 10053486 206A/206B/206L/206L1/206L3/206L4/407 Replacement Engine Mounts

OEM Cross References

OEM Replacement / 206-064-107-101
OEM Replacement / 206-064-107-103
OEM Replacement / 206-064-107-109
OEM Replacement / 206-064-107-111
OEM Replacement / 206-064-105-101
OEM Replacement / 206-064-106-101
OEM Replacement / 206-064-105-102

External Warning

Installs on Bell Helicopter 206L1/L3/L4.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 0.5 lb / 0.23 kg net weight increase

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
