206 A/B Replacement Engine Mount (s/n 2609 and sub)


Part Number: D206-811-013

Aircraft Models: Bell - 206A/B

  • In stock

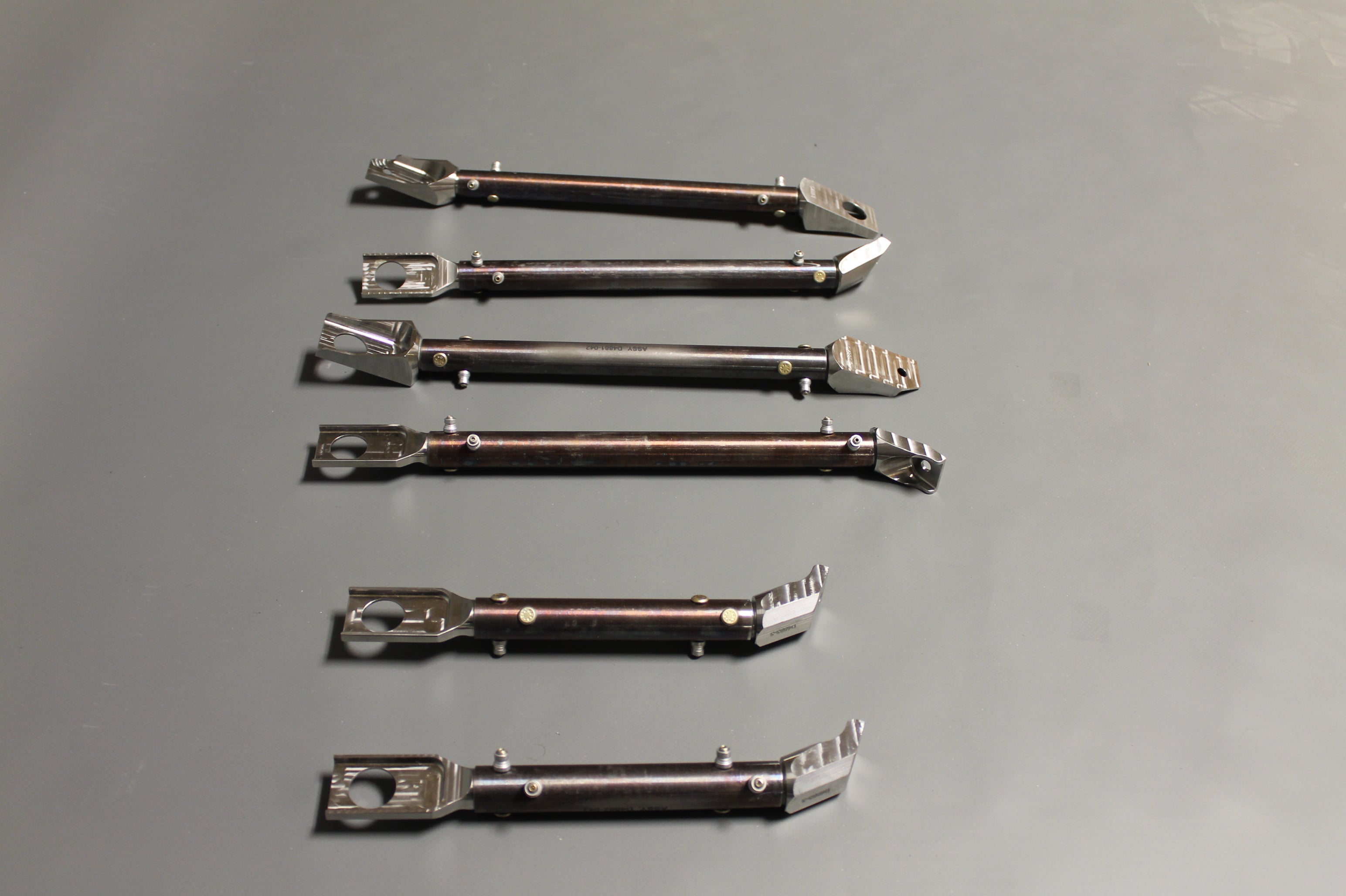

The DART replacement engine mounts include the necessary components to replace the OEM engine mounts. The kit consists of three bipod type mounts located on the left, right, and lower Fwd sides of the engine. *Installs using the same hardware and attachment points as the OEM. Replaces OEM Fwd leg assemblies (206-062-101-101/-102), Aft leg assemblies (206-062-103-017/018) and leg assemblies (206-062-102-013)

Key Features

  • Direct replacement for OEM mounts
  • Machined fittings
  • Hi-lok fasteners

Key Benefits

  • Stainless steel construction for improved durability and increased corrosion resistance
  • Machined end fittings for improved reliability
  • User-friendly system reduces the amount of time required for engine alignment
  • Parts can be replaced on an individual basis

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH14-17 206/206A/206A1/206B/206B1/206L/206L1/206L3/206L4/407 Replacement Engine Mounts
STC FAA - USA SR03465NY 206/206A/206A1/206B/206B1/206L/206L1/206L3/206L4/407 Replacement Engine Mounts
STC EASA - Europe 10053486 206A/206B/206L/206L1/206L3/206L4/407 Replacement Engine Mounts

OEM Cross References

N/A

External Warning

Installs on 206AB (S/N 2609 and sub).

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 1.8 lbs / 0.82 kg net weight increase

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
