Description

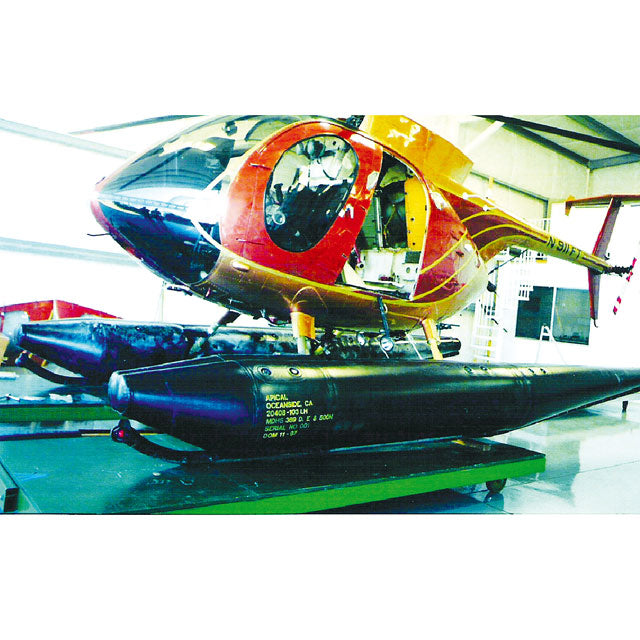

The DART MD 500 OEM Replacement Utility Float design allows for permanent inflation and full time buoyancy for helicopters assigned to offshore or other over water missions. Abrasion-resistance chafing material located on the underside of each float and the reinforcement of the personnel walkways are incorporated to provide additional protection.
*Requires prior installation of OEM float system. Compatible on MD Skidtube 369D292114-501 and requires prior installation of DART skid extension 20411-1. Price is per float.
Key Features
- Floats are removable without removing landing gear (slip-on)
- No life limit on inflatables (On-condition floats)
- Maintenance intervals based on accumulated installed time on aircraft
- Single float design
- Abrasion-resistance chafing material
- All float pressure relief valves are field replaceable
- Designed with multi air-holding chambers
Key Benefits
- Certified for take-off after water landing
- Plug-and-Play installation
- Easy to install (slip-on)
- Worldwide R&O support
- Exchange program available
- Reduced maintenance cost: longer inspection intervals vs. competition
- Best lead time
- Industry leading turn-around-time
- Reduced installation time vs. competition
- Spare parts availability
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | FAA - USA | SR00937LA | MD369D/MD369E/MD369HE/MD369HM/MD369HS | Utility Floats |
