Description

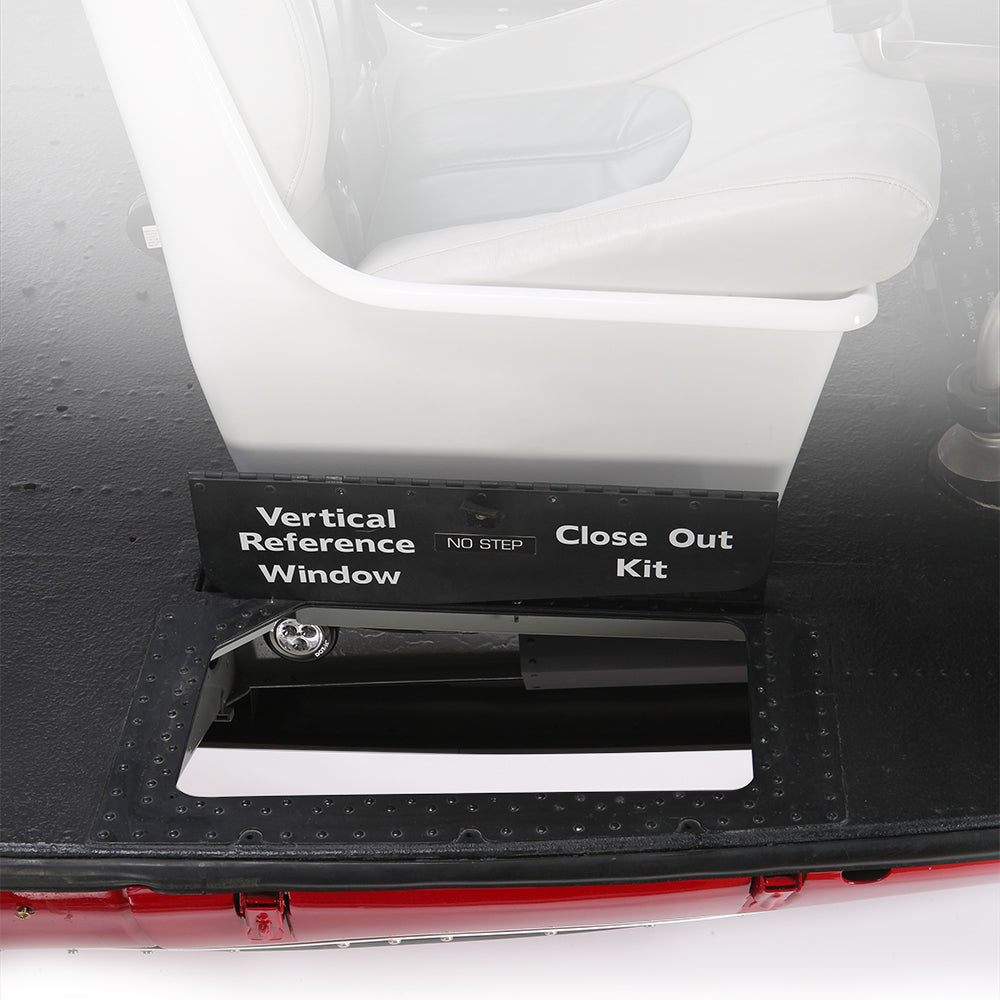

DART Vertical Reference Floor Window Kits are available in three sizes to meet a variety of operational needs. You may now easily see through the floor window for vertical reference flying. Since the wider windows allow you to view further up the line, you can choose a shorter line, increasing your operational options. The huge outside windows are installed in the AFT panel using 1/4" fasteners that may be readily disassembled for maintenance. The Vertical Reference Floor Window Kit is now available in two options: Install the Interior Window or Install the New Close Out Kit. The DART Close Out Kit includes aluminium panels that act as a barrier between the floor & the belly panel, preventing dirt & other FOD (Foreign Object Damage) from entering the region.
This Kit includes Part Number: D350-567-113, Description: Super Sized (XL) Exterior Window Kit + Part Number: D350-567-115, Description: Large Interior Floor Window kit.
This Kit includes Part Number: D350-567-113, Description: Super Sized (XL) Exterior Window Kit + Part Number: D350-567-115, Description: Large Interior Floor Window kit.
Key Features
- AFT panel 1/4" turn fasteners enable for easy window removal for servicing / Maintenance.
- There is also a Close-Out Retrofit Kit available (See Prerequisites).
- There are no Vne (Never Exceed Speed) restrictions.
Key Benefits
- Compatible with Standard Close-Out Kit i.e. Part Number: D350-567-141, Description: Floor Window Close Out (Regular Seats) as well.
- Large windows result in a better viewing envelope and allow the pilot to see more of the line.
- Multiple window sizes allow for optimal adaptability.
- Three External Window Sizes.
- Two Internal Window Sizes.
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | DCA - Malaysia | VSTC/2018/011 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F1/AS355F2/AS355N/AS355NP | Installation of vertical reference floor window |
| STC | DGAC – Ecuador | ACTS-20-006 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Installation of Vertical Reference (floor) Window |
| STC | ANAC - Brazil | 2009S05-16 | AS350B | Vertical Reference Floor Window Kit |
| STC | ANAC - Brazil | 2009S05-17 | AS350B1/AS350B2/AS350B3/AS350BA | Vertical Reference Floor Window Kit |
| STC | ANAC - Brazil | 2009S05-18 | AS355F/AS355F1/AS355F2/AS355N | Vertical Reference Floor Window Kit |
| STC | EASA - Europe | EASA.IM.R.S.01560 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D | Vertical Reference Floor Window Kit |
| STC | EASA - Europe | EASA.IM.R.S.01561 | AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Vertical Reference Floor Window Kit |
| STC | CASA - Australia | F95/1538 | AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS350F/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Vertical Reference Floor Window Kit |
| STC | DGCA - Mexico | IA-164/2012 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Vertical Reference Floor Window Kit |
| STC | TCCA - Canada | SH92-18 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Vertical Reference Floor Window Kit |
| STC | FAA - USA | SH989NE | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D | Vertical Reference Floor Window Kit |
| STC | FAA - USA | SH990NE | AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Vertical Reference Floor Window Kit |
