KAI Surion KUH Fire Attack™ System

Mission Equipment
Part Number: 338-000000-001
Aircraft Models: KAI - Surion
Price:
Login to see prices

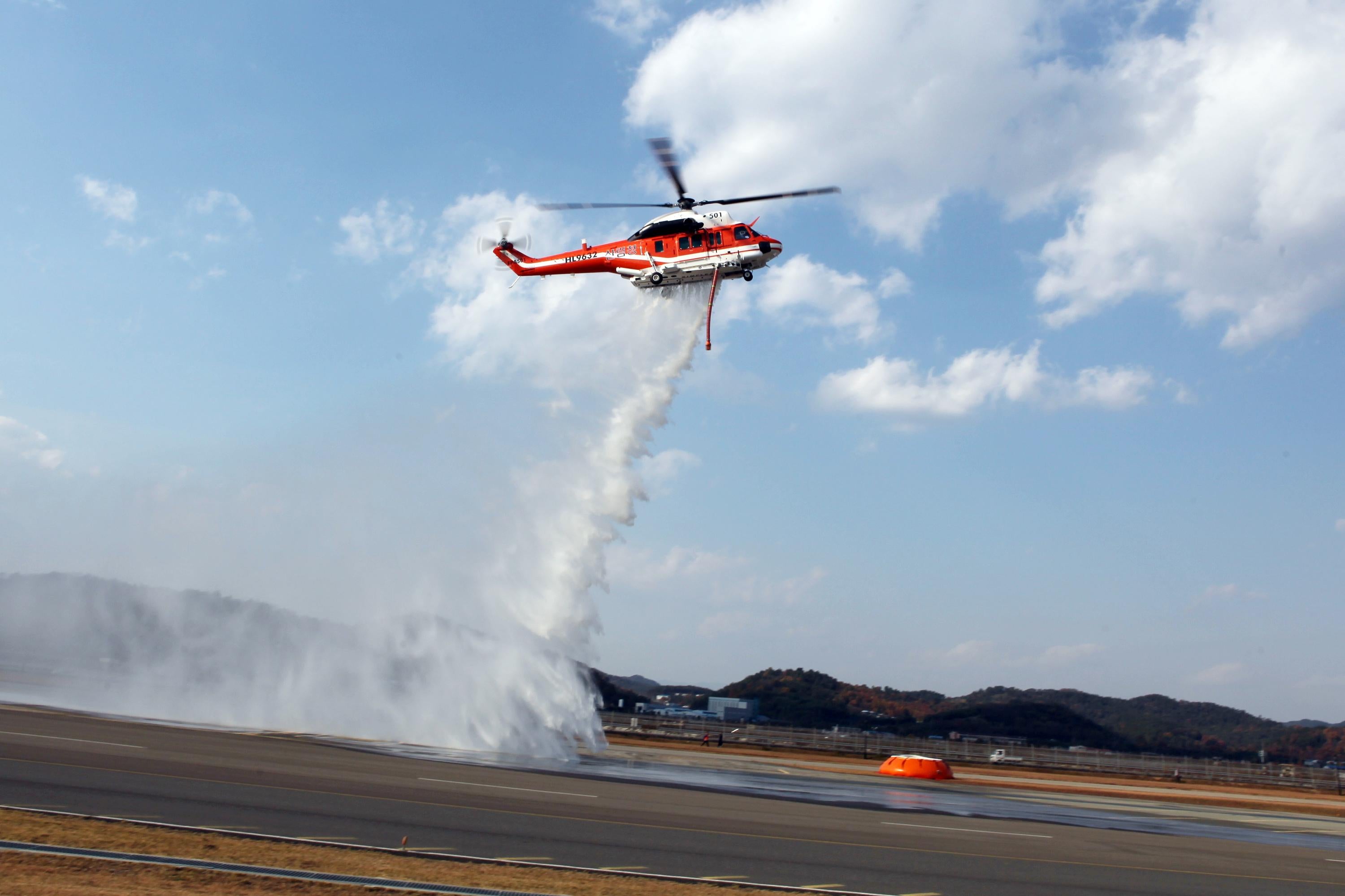

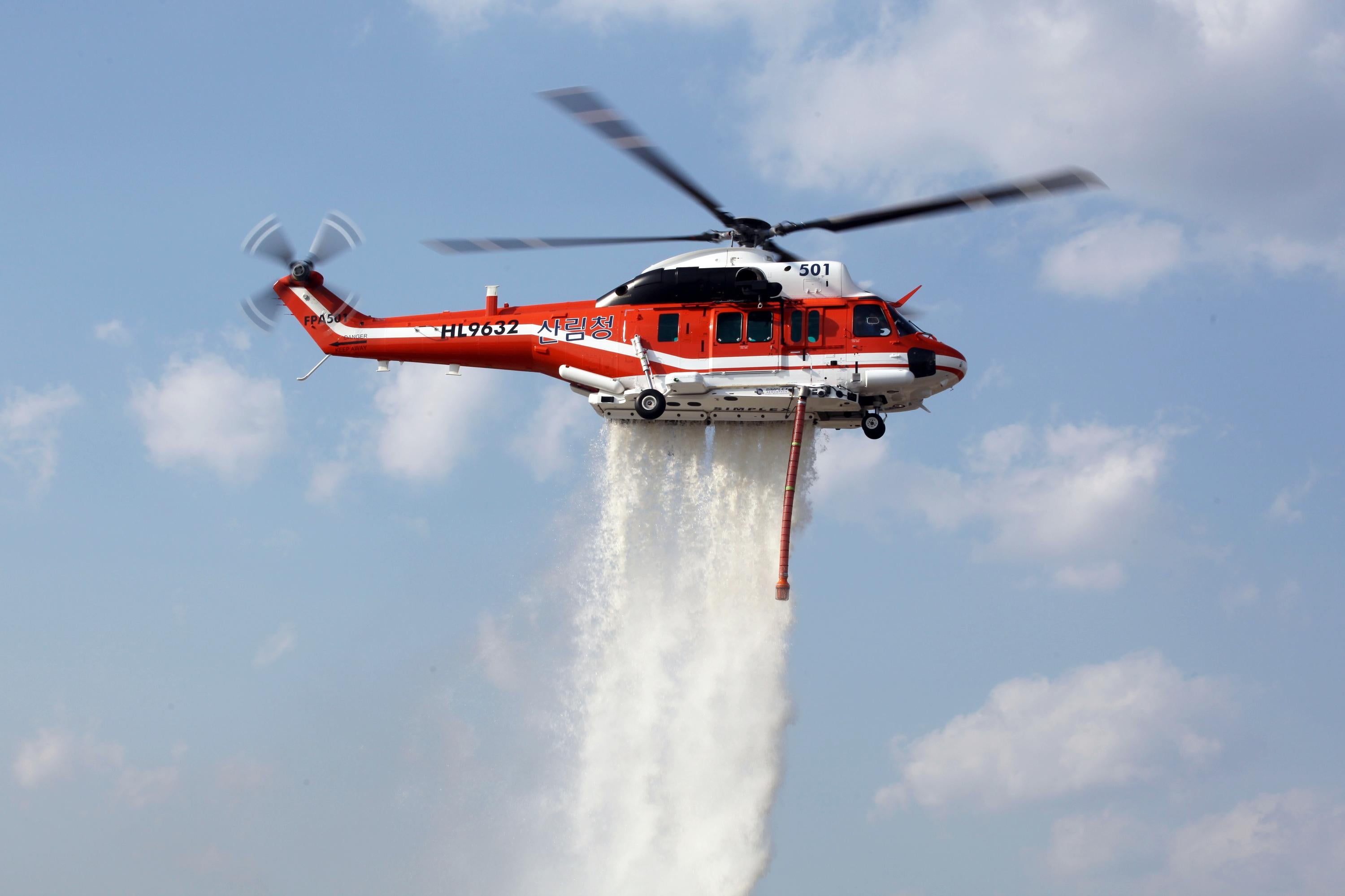

Developed with KAI (Korean Aerospace Industries) for the new Surion KUH, the Model 338 is a cutting edge Fire Attack™ system. The system consists of a belly mounted carbon fiberglass tank, which holds 2000 liters (525 gallons) of water.

Description

Developed with KAI (Korean Aerospace Industries) for the new Surion KUH, the Model 338 is a cutting edge Fire Attack™ system. The system consists of a belly mounted carbon fiberglass tank, which holds 2000 liters (525 gallons) of water.

Key Features

  • Durable, chemical resistant, carbon fiber composite matrix tank
  • Internal foam injection system
  • 6" hover refill pump
  • Cockpit controlled selectable drop patterns
  • Only option for rigid firefighting tank on the Surion KUH

Key Benefits

  • Installation/removal in 30 minutes
  • Approved for day/night VFR

Approvals

N/A

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

VNE 130 KIAS, Restricted category when snorkel installed or tank filled

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 782.5 lbs / 354.9 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
