Dual Cargo Mirror Installation

Mission Equipment
Part Number: D212-580-041
Aircraft Models: Bell - 205
Price:
Login to see prices

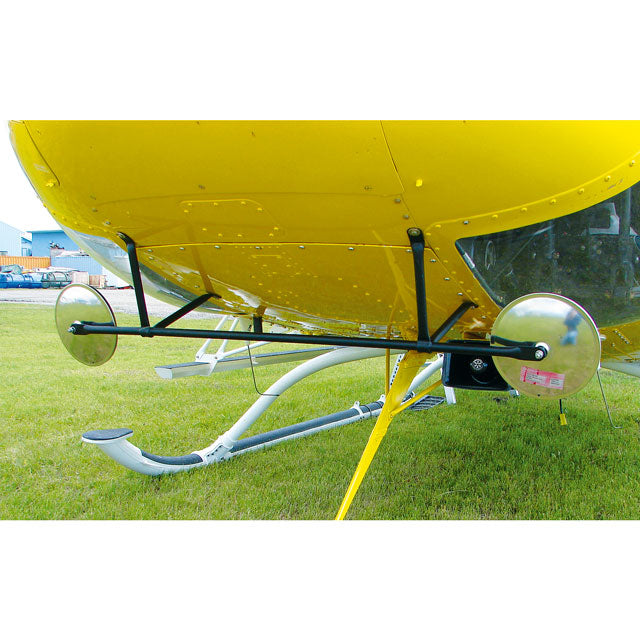

The 204/205/212/214/412 dual mirrors are fixed onto a bracket installed along the rivet lines on the nose of the aircraft, and provide better viewing of the cargo hook for pickup and release from both pilot and co-pilot positions. D204-562-041 hole distance between top bracket arms (Fwd) is 21.5" and between bottom bracket arms (aft) is 25.25". D205-563-041 hole distance between top bracket arms (Fwd) is 27.38" and between bottom bracket arms (aft) is 27.25" D212-580-... Read more
The 204/205/212/214/412 dual mirrors are fixed onto a bracket installed along the rivet lines on the nose of the aircraft, and provide better viewing of the cargo hook for pickup and release from both pilot and co-pilot positions. D204-562-041 hole distance between top bracket arms (Fwd) is 21.5" and between bottom bracket arms (aft) is 25.25". D205-563-041 hole distance between top bracket arms (Fwd) is 27.38" and between bottom bracket arms (aft) is 27.25" D212-580-041 hole distance between top bracket arms (Fwd) is 27.38" and between bottom bracket arms (aft) is 27.25" *Compatible with D212-580-043 LED Pulse Lights. Provides view from both pilot & co-pilot positions, 8" adjustable convex mirrors, installs on nose with rivet lines that run parallel down the nose. Hole distance between top bracket arms (Fwd) is 27.38" and between bottom bracket arms (aft) is 27.25". Read less

Description

The 204/205/212/214/412 dual mirrors are fixed onto a bracket installed along the rivet lines on the nose of the aircraft, and provide better viewing of the cargo hook for pickup and release from both pilot and co-pilot positions. D204-562-041 hole distance between top bracket arms (Fwd) is 21.5" and between bottom bracket arms (aft) is 25.25". D205-563-041 hole distance between top bracket arms (Fwd) is 27.38" and between bottom bracket arms (aft) is 27.25" D212-580-041 hole distance between top bracket arms (Fwd) is 27.38" and between bottom bracket arms (aft) is 27.25" *Compatible with D212-580-043 LED Pulse Lights. Provides view from both pilot & co-pilot positions, 8" adjustable convex mirrors, installs on nose with rivet lines that run parallel down the nose. Hole distance between top bracket arms (Fwd) is 27.38" and between bottom bracket arms (aft) is 27.25".

Key Features

  • Also available: Pulse Lights

Key Benefits

  • Mirrors are now adjustable
  • D212-580 mirror now has multiple installation locations for improved viewing LED Pulse Lights:
  • Brighter LED Light (1,000 lumens)
  • Longer life (30,000+ hrs)
  • Less power consumption (2 amps)
  • Compatible with all DART Mirrors
  • Superior forward conspicuity

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-624/2019 204B/205A1/205B/212/214B/214B1/412/412CF/412EP Instalación de espejo de carga y luz de pulso
STC EASA - Europe 10017077, Rev. 2 204B/205A1/212/214B/214B1/412/412EP Cargo Mirror and Pulse Light Installation
STC ANAC - Brazil 2009S11-09 204B/205A1/212/214B/214B1/412 Cargo Mirror and Pulse Light Installation
STC TCCA - Canada SH92-16 204B/205A1/212/214B/214B1/412/412CF/412EP Cargo Mirror and Pulse Light Installation
STC FAA - USA SH975NE 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP Cargo Mirror and Pulse Light Installation
STC CAAC - China VSTC0682 412EP Cargo Mirror and Pulse Light Installation

OEM Cross References

OEM Replacement / AAL-706-103-001
OEM Replacement / AAL-706-103-003

External Warning

N/A

Prerequisite

N/A

Compatible With

LED Pulse Lights: D212-580-043

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

1 hr

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 5.00 lbs / 2.27 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
