Dual Battery Rack Kit

Mission Equipment
Part Number: D205-579-015
Aircraft Models: Bell - 204
Price:
Login to see prices

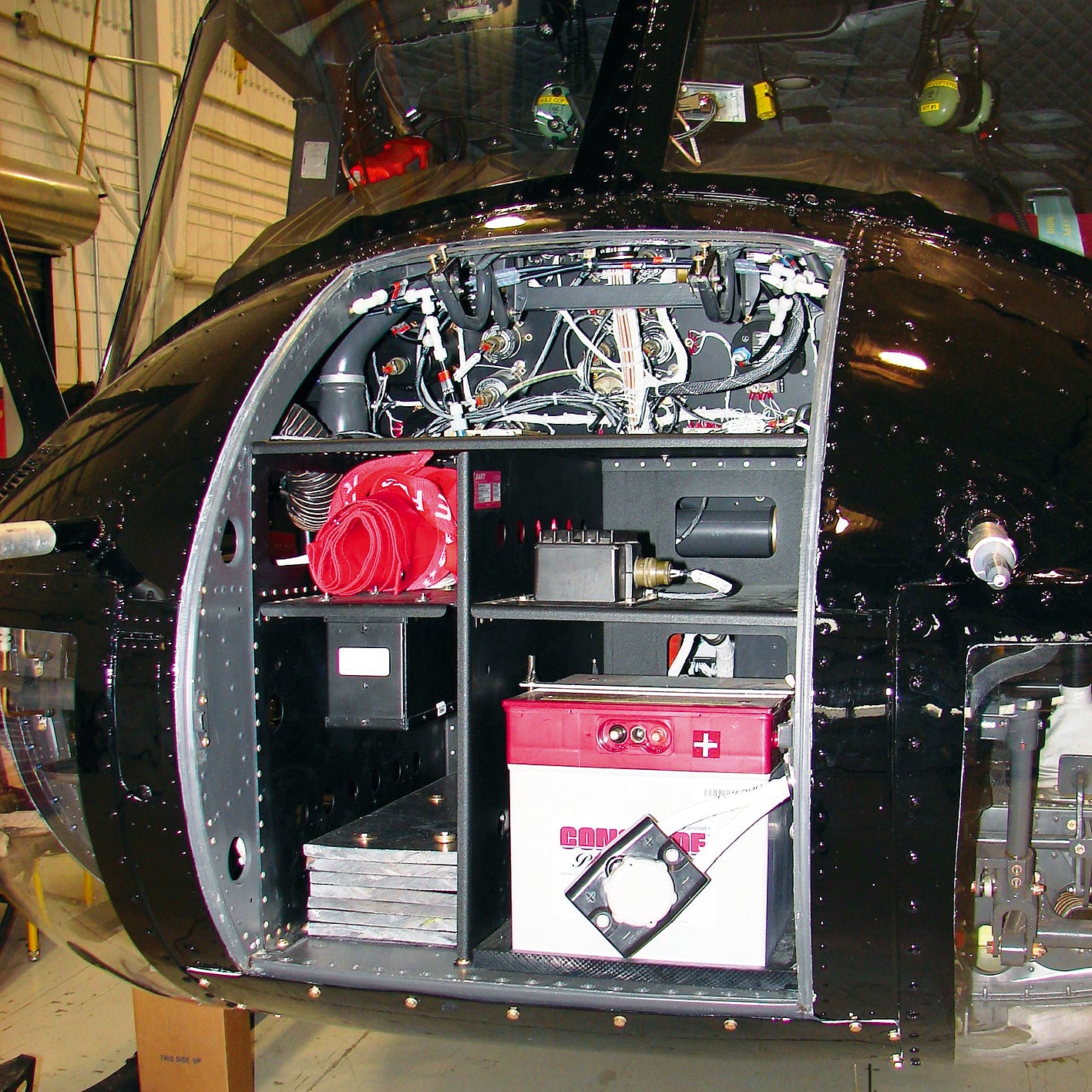

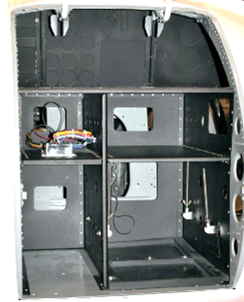

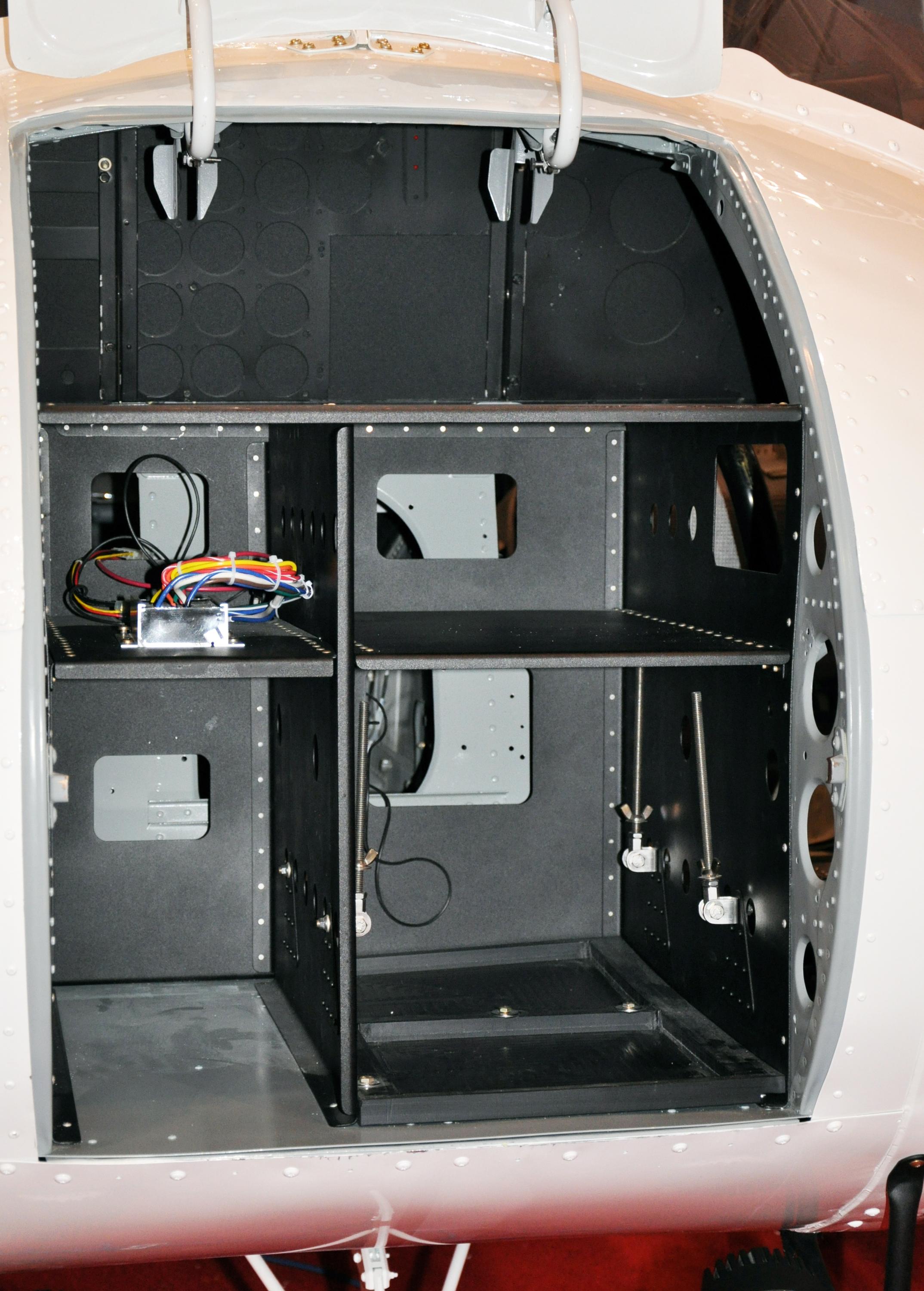

Forget about lead installation for added front end ballast … just add a second battery and accelerate your start sequence. With DART Aerospace's Dual Battery Rack Kit you no longer need to worry about housing the battery power. The Dual Battery Rack allows the 204 and 205 to carry an extra battery for cold weather operations. The rack also provides additional space for extra avionics. *Ideal for cold weather operations. Installs in nose compartment & provides spa... Read more
Forget about lead installation for added front end ballast … just add a second battery and accelerate your start sequence. With DART Aerospace's Dual Battery Rack Kit you no longer need to worry about housing the battery power. The Dual Battery Rack allows the 204 and 205 to carry an extra battery for cold weather operations. The rack also provides additional space for extra avionics. *Ideal for cold weather operations. Installs in nose compartment & provides space for an additional battery in lieu of lead ballast. Additional space provided for extra avionics. Picks up on removed rivets along shelves. Read less

Description

Forget about lead installation for added front end ballast … just add a second battery and accelerate your start sequence. With DART Aerospace's Dual Battery Rack Kit you no longer need to worry about housing the battery power. The Dual Battery Rack allows the 204 and 205 to carry an extra battery for cold weather operations. The rack also provides additional space for extra avionics. *Ideal for cold weather operations. Installs in nose compartment & provides space for an additional battery in lieu of lead ballast. Additional space provided for extra avionics. Picks up on removed rivets along shelves.

Key Features

N/A

Key Benefits

  • Ideal for cold weather operations

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SH1004NE 204B/205A/205A1 Dual Battery Rack Installation
STC TCCA - Canada SH92-19 204B/205A1/205B Dual Battery Rack Installation

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

12 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 22.30 lbs / 10.15 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
